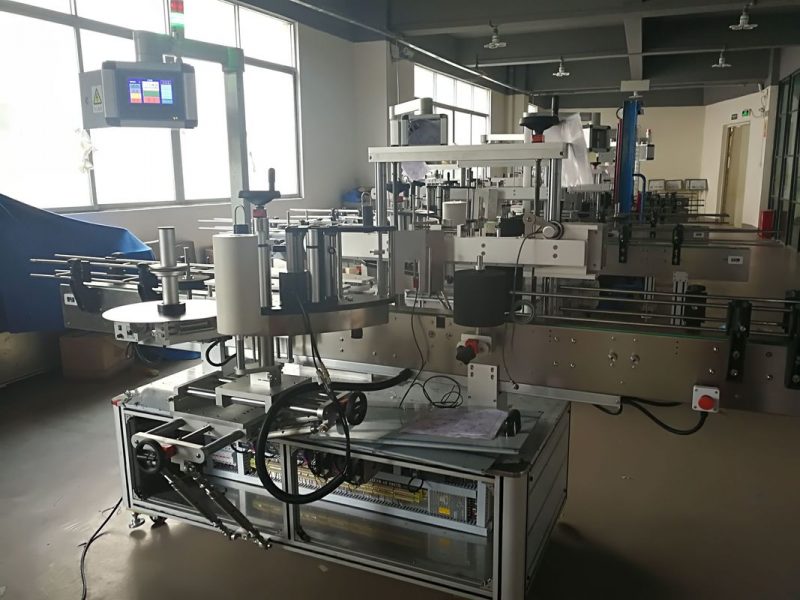

China Flat Bottle Labeling Machine , Automatic Label Applicator Machine PLC And Touch Screen supplier
Detailed Product Description

Warranty Of Equipment:12 MonthsOEM & ODM:Labeling Machine
Control:PLC And Touch ScreenPackaging Machine:Self Adhesive Labeling Machine
Dimentions:3048mm X 1700mm X 1600mmPackaging:Glass Bottle ,plastic Bottle ,container
Applications Area:Bevarage/Drinks/Daily Chemical

Flat Bottle Labeling Machine , Automatic Label Applicator Machine PLC And Touch Screen

Technical Parameters

Production speed45m/min (4000-8000B/H according to bottle and label size)
Labeling accuracy±1mm within
Label max width190mm
Bottle diameterThickness≤30mm Height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL3048×W1200×1500mm
Using power380/220V 50Hz 2300W

Product Feature

1. For the round and flat bottle labeling, no need to buy two machines, saving the cost when you need labeling for both round and flat labeling machine automatic bottle.

2. This model applies to cosmetic, beverages and pharmaceutical industries areas.

3. PLC touch screen control system with two languages of Chinese and English, realizing the contact between human and computer, easy to operate.

4. Labeling sending system can be adjusted in 8 directions and dimensions to meet the different bottles size.

5. Adopt dynamic soft rubber-covered roll to make sure labeling quality. The structure of cylinder clamping roller would improve the labeling precision.

6. The reciprocating air cylinder can help to position the bottles, and make an accurate labeling on the specified part of product. It can stick one side or two side labels at one time, especially suitable for symmetric flat bottle.

7. According to your demand, we can make it contact with other machines to form a production line such as filling machine, capping machine etc. For one machine in working, it can also match with material feeding pump etc. And also special customization is acceptable.


1. This machine suit for one side or double sided labeling of the,flat bottle.

2. Installed round bottle labeling device ,adhesiving labeling for flatbottles , plus one sensor ,can realize orientation labeling of the flatbottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3. Using 82.6 mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle.

4. Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment

5. Ribbon date printer and injek printer for options

6. Labeling all kinds of bottles ,only need to adjust machine

7. For oval bottle, only need to adjust oval bottle labeling device.

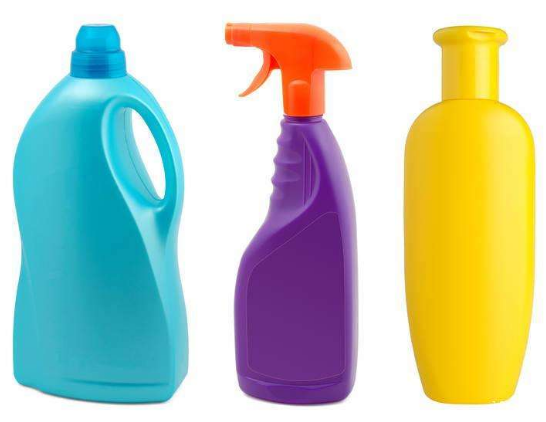

Flat Bottle Samples

Flat Bottle Labeling Machine , Automatic Label Applicator Machine PLC And Touch Screen


Tag: front and back labeling machine, automatic label applicator machine
