Power Supply:220V 50/60HZ 0.75KWHeight Of Object:30-200mm
Width Of Object:20-200mmHeight Of Label:15-180mm
Length Of Label:25-300mmAccuracy Of Labeling:±1mm (excluding Object And Label Error)
Key1:Label ApplicatorKey2:Cup Labeling Machine
Key3:Flat Labeling MachineName:PLC Famous Japanese MITSUBISHI Brand Flat Surface Label Applicator With Object Detect Magic Eye

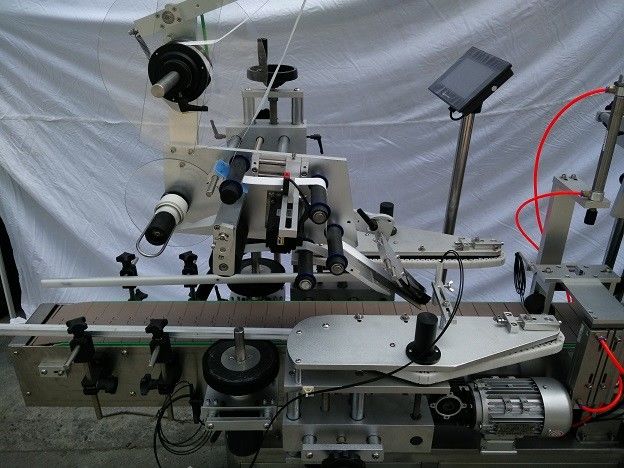

20-200mm width flat surface Label Applicator with top and back side labeler

Technical Parameters

Name20-200mm width flat surface Label Applicator with top and back side labeler
Labeling Speed20-200pcs/min
Height of Object30-200mm
Thickness of Object20-120mm
Height of Label15-110mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter300mm
Accuracy of Labeling±1mm
Power Supply220V 50/60HZ 0.75KW
Gas Consumption of Printer5Kg/m2(if add coding machine)
Size of Labeling Machine1600(L)×550(W)×1600(H)mm
Weight of Labeling Machine150kg

Configuration:

No.Partbrandquantity
1PLCMITSUBISHI(Japan)1
2Main converterDANFOSS(Denmark)1
3HMIWEINVIEW(Taiwan)1
4Servo labeling motorDELTA(Taiwan)1
5Servo labeling motor driverDELTA(Taiwan)1
6Conveyor motorH.Y(Taiwan)1
7Conveyor motor gearboxH.Y(Taiwan)1
8Spoke motorGPG(Taiwan)1
9Spoke motor gearboxGPG(Taiwan)1
10object detect magic eyeOMRON(Japan)1
11optical fiberOMRON(Japan)1
12Label outing detect magic eyeLEUZE(Germany)1

labeling main frame:

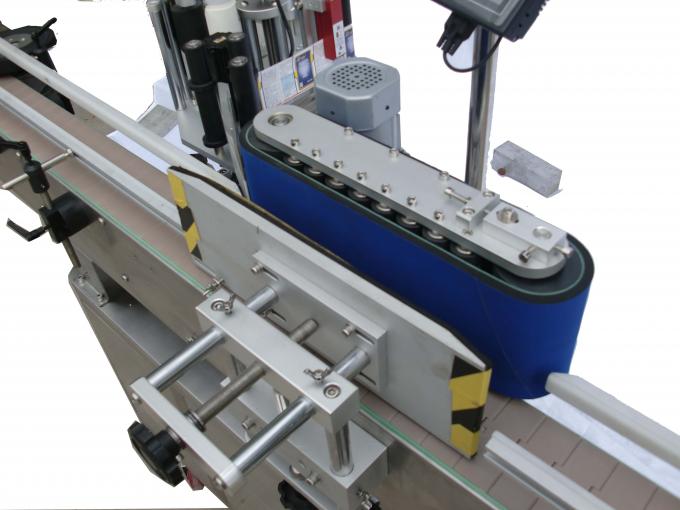

This labeling machine is the most important parts as follow, diffirent parts have diffirent use. According to the specification, we can adjust the label position.3 steps for adjusting height

1. Adjust the height adjusting hand wheel to lift and down the main frame.

2. Loosen the universal fasten handle during you adjusting work, and fasten it when finish.

3. Adjust the peel off board position till it is 2-3mm to the work piece.

4. Adjust the right/left adjusting wheel (drawing 3) to move the main frame to match with the work piece.

5. Through adjusting main frame position , you can also adjusting the peel off board position according to the work piece.
