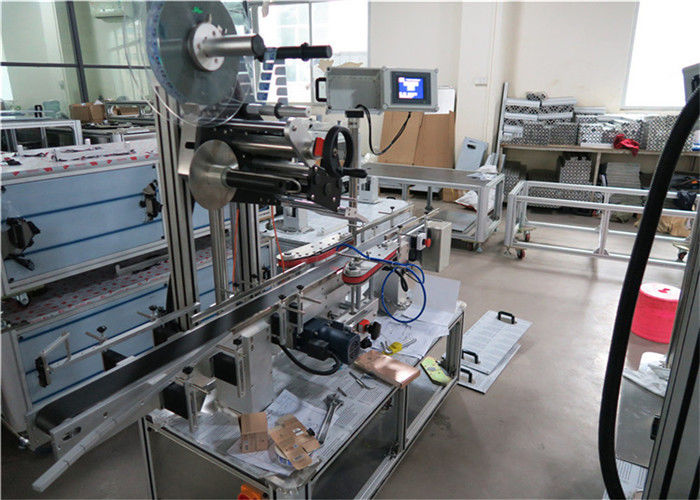

High Speed Top Label Applicator Equipment For Flat Surfaces

Detailed Product Description

Applications:	Label On Top Of Products	Label Material:	Adhesive Label
Driven Type:	Pneumatic	Production Speed:	1-50m/min
Accuracy:	±1mm	Label Height Max.:	130mm
Machine Weight:	180KG	Power System:	220V 50HZ 1500W

1-50m/min Speed Top Label Applicator Equipment For Flat Surfaces

Technical Parameters

Production speed	1-50m/min
Labeling accuracy	±1mm
Label max width	130mm
Paper roll inner diameter	76.2mm
Labels roll outer diameter	330mm
Outline size	L2000×W700×1400mm
Weight	180KG
Using power	220V 50HZ 1500W
Bottle diameter	10-300mm

Product Characteristic

1 ,It’s available to label on top,especially to one label from top to both sides of products,the perfect design and the advanced controlling and checking system guarantee it is labeled speedily and precisely.The advanced andkind human interface,interface freely and the on-line helping system make it easy to operate.

2 ,The famous high precise serve motor drives the labeling head and controls to convey the labels

The separated clutch makes the strain more balanced.It ensures accurate labeling

3 , The controlling system adopts SIMEMS and famous panel,the machine interface can be operated in Chinese and English

4 ,It is convenient to adjust the labeling head,labeling speed is automatically synchronized with conveyor speed to ensure precisely labeling.

Applications

applying self adhesive labels to the top of a box or carton or jar

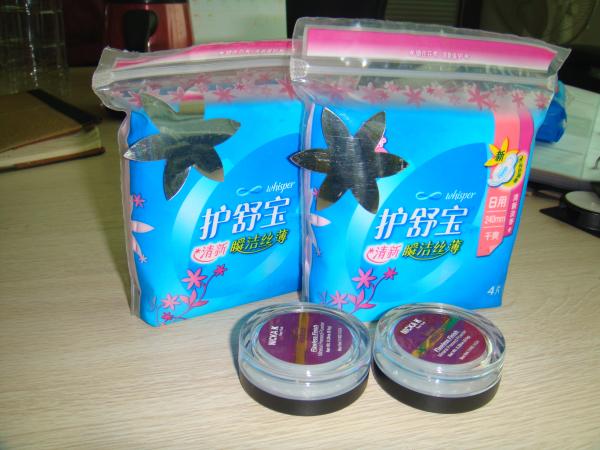

Labeled samples for reference

FAQ

1. Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with over 16 years experience.

2. Q: What's the payment terms?

A: T/T,30% deposit and 70% balance before delivery.

3. Q: How to order?

A: You can send me an inquiry,then we could confirm the details through emails or telephone.

4. Q: How much is the transportation freight?

A: The freight depends on the weight and size,also the destination port

Our business involves various markets all over the world, in many fields with our excellent product performance.

Tag: flat surface labeling machine, flat surface label applicator
