Detailed Product Description
| Eletric Power: | 2300W | Production Speed: | 45m/min |
|---|---|---|---|
| Label On Bottle Accuracy: | ±1mm | Label Max Width: | 190mm |
| Voltage: | 380V / 220V | Eletrics Parts: | Imported Brand |
Automatic self-adhesive labeling machine for plastic bottles
Technical Parameters
| Production speed | 45m/min (5000-8000B/H |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter | 30-110mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L4048×W1400×1650mm |
| Air source | 4-6KG 30L/MIn (for round bottle) |
| Using power | 220V 50HZ 1200W |
| Round bottle label height | 168mm (accept custom) |
| Weight of machine | 650kgs |
Application
Sticker labeling machine is suit for round,flat,cone shape products in Cosmetic, food, pharmaceutical and other light industries, labeling on one size one two sides all ok as client need
Advantages
1 , Speed:6000-8000B/H(speed adjustable,the label is smaller, the speed is faster)
2 , High labeling accuracy : ±1mm within(eliminate the error of bottle and labels)
3 , Changing the bottle very fast
4 , Labeling head with eight orientations adjustment,convient to adjust the angle what you want
5 , Machine more stable,convient to change the new products and faster
6 , Widely suit for cone bottle’s double sides labeling, no need to change the any parts
7 , Transparent label can be sticked without bubble and adhesive label without wrinkle
8 , Spare parts with high precision processing
9 , Each labeling head with one control system,labeling more stable
10 , Using new style machine head (patent design),convient to adjust,new design,good stability
11 , This sticker labeling machine controlled by PLC system and use touch-screen control operating system.
12 , Main parts used improted brand ,increase stablitily and durable of machine
14 , Changing different size bottle,only need to adjust the machine
13 , Machine strickly made according to your labeling requirement

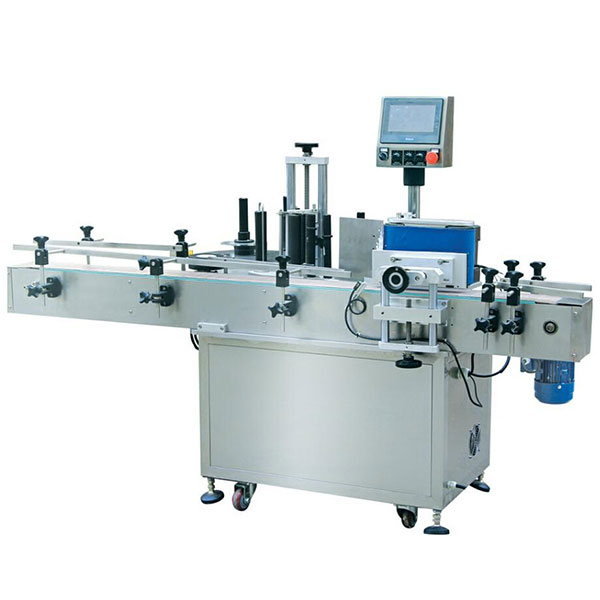

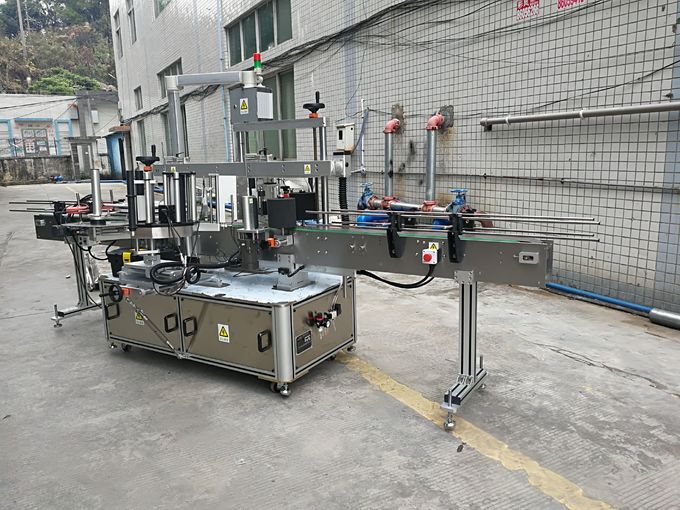

Machine Photo
