Horizontal Ball-Point Pen Vial Sticker Labeling Machine

Detailed Product Description

Operation  :	Ball-point Pen Label Sticker Machine Students' Supply	Conveyor Motor:	GPG（Taiwan）
Labeling Speed:	60-300pcs/min	Height Of Object:	25-95mm
Accuracy Of Labeling:	±0.5mm	Power Supply:	220V 50/60HZ 2KW
Diameter Of Object:	20-200mm	Label Roller Inside Diameter:	76mm
Label Roller Outside Diameter:	320mm	Gas Consumption Of Printer:	5Kg/cm^2

Horizontal vial labeling machine ball-point pen label sticker machine students' supply

Application

Horizontal small round bottle labeling machine is applicable for all kinds of round cylinder shape object in articles for daily use (apothecary jar, ball-point pen, glue stick) , chemical(test tube, chemical bottle), pharmaceutical (penicillin bottle, ampoule bottle, medicine bottle, injectional medicine), cosmetic (nail polish, lip stick, lipliner, pomade, eyeblack, BB Cream, spray bottle) electronic(A small flashlight, thermometer, 7th battery, currency detector) etc industry.

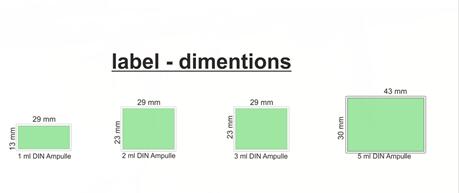

Clients' bottles and labels

Length diameter

1ml 47mm+/-2mm 1ml 10.75mm+/-0.15mm

2ml 57mm+/-2mm 2ml10.75mm+/-0.15mm

3ml 62mm+/-2mm 3ml 12.75mm+/-0.15mm

5ml 68mm+/-2mm 5ml 14.75mm+/-0.15mm

10ml 87mm+/-2mm 10ml 17.75mm+/-0.15mm

20ml 100mm+/-2mm 20ml 22.75mm+/-0.15mm

There are two set of vial labeling machine, the one is for the diameter of bottles for 12mm-15mm, the other is for the diameter of bottle for 17mm-22mm. Because the conveyor is different.

So give us the size of bottles and labels, we will do the better proposal.

Technical Parameters

Name	Vial Labeling Machine
Labeling Speed	60-300pcs/min
Height of Object	25-95mm
Thickness of Object	12-25mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	350mm
Accuracy of Labeling	±0.5mm
Power Supply	220V 50/60HZ 2KW
Gas Consumption of Printer	5Kg/m2(if add coding machine)
Size of Labeling Machine	2500(L)×1250(W)×1750(H)mm
Weight of Labeling Machine	150kg

Configuration

No.	Part	brand	quantity
1	PLC	MITSUBISHI(Japan)	1
2	Touchscreen	WEINVIEW(Taiwan)	1
3	labeling motor	DELTA(Taiwan)	1
4	labeling motor drive	DELTA(Taiwan)	1
5	Conveyor motor	GPG(Taiwan)	1
6	Conveyor motor gearbox	GPG(Taiwan)	1
7	Spoke bottle motor	GPG(Taiwan)	1
8	Spoke motor gearbox	GPG(Taiwan)	1
9	Conveyor / spokes governor	GPG(Taiwan)	2
10	object detect magic eye	OMRON(Japan)	1
11	optical fiber	OMRON(Japan)	1
12	Label outing detect magic eye	LEUZE(Germany)	1

Tag: vial sticker labeling machine, small bottle labeling machine
