China Large Flat Surface Object Self Adhesive Sticker Labeling Machine Siemens PLC Controller supplier
Detailed Product Description

Material:SUS304Labeling Speed:20-40pcs/min
Name:Point Labeling Machine Conical BottlesPower:220V,0.8KW,50/60HZ
Applicable Hight Of Bottle Body:30-200mmOther:Can Be Customized Labeling Machine Conical Bottles

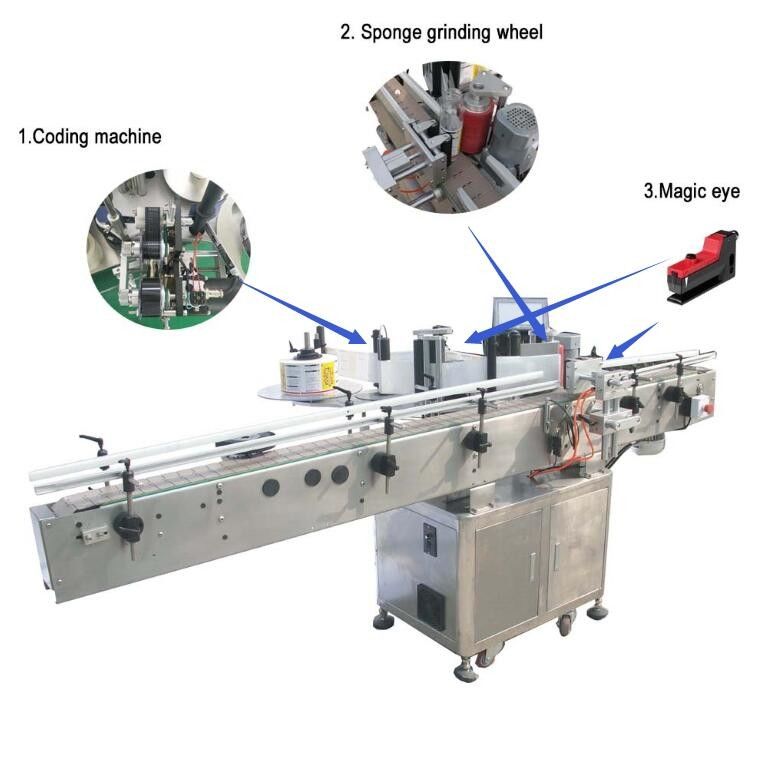

Economy Point Round Bottle Labeling Machine

The labeling Machine is suitable for all kinds of cylindrical objects, such as glass bottles, Plastic bottles. (The cone objects can be customized). And it can begin to label from certain point. a labeling machine conical bottles

OperationPLC control system makes labeling machine easy to operate
MaterialLabeling machine’s main body is made of SUS304 stainless steel
ConfigurationOur labeling machines adopt Japan motor driving and photo sensor and Taiwan control system
FlexibilityClient can chose to add printer and code machine; can connect with conveyer


Namepoint labeling machine pet and round bottles
Labeling Speed20-40pcs/min(Depending on label length and bottle thickness)
Height of Object30-200mm
Thickness of Object30-90mm
Height of Label15-140mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter380mm
Accuracy of Labeling±0.5mm
Power Supply220V 50/60HZ 0.8KW
Gas Consumption of Printer5Kg/cm^2
Size of Labeling Machine2000(L)×1000(W)×1250(H)mm
Weight of Labeling Machine150Kg


1. What kind of labeling machine do you have?

Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface. Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we\'ll provide you satisfying labeling solution.

2. Could we add coding machine to print date and lot No.?

Yes, you can chose to add coding machine to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.

Tag: self adhesive sticker labeling machine, label applicator equipment
