Detailed Product Description
| Composition: | Labeling | Electricity: | Siemens Schneider |
|---|---|---|---|
| Material Of Labelling: | Plastic/Glass | Machine Specification: | L3048×W1700×1600mm |
| Label Core Core: | 76.2mm | Label Core Diameter: | 330mm |

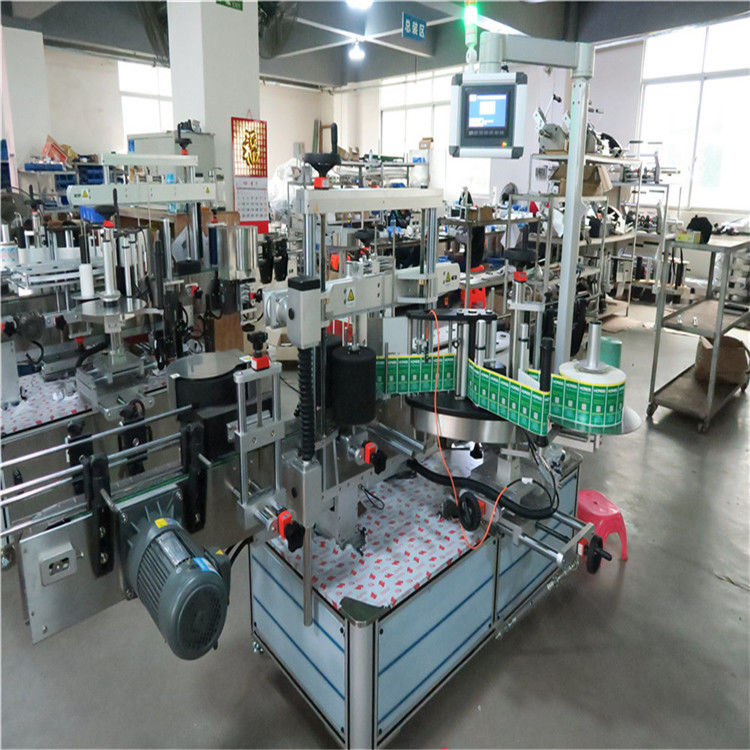

Automatic Square Bottle Labeling Machine On Double Sides / One Side
Technical Parameters
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm(can be raised according to the require) |
| Bottle diameter | Thickness≥30mm height≤500mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L3048×W1700×1600mm |
| Weight | 380KG |
| Using power | 220V 50HZ 1500W |
Applications
1, Adhesive labeling machine widely used in food, toy, chemical, cosmetic, medical and plastic industries.
2, Labeling on front and back sides of different kinds objects with two labels at the same time.
(P.S. our labeling machine can be designed according to your needs) for PET round bottle, plastic bottle, glass bottle for product which have circumferential surface, conical surface and square surface.
3, 30 groups labeling parameters, when change the bottles, just adjust the machine part is ok.
3 , Label spill, label broken or other malfunction during machine working all will alarm and stop working.
4 , Electrical cabinet,Conveying mechanism,Separate bottle device,Press bottle device,Roll label device,Brush label device,1# and 2# labeling engines,Operation system and control system
Configuration List (Main electrics)
| No. | Name | Qty & Unit | Brand |
| 1 | Color touch screen | 1 set | Taiwan Hitech |
| 2 | Servo Motor | 2 sets | Yaskawa Japan |
| 3 | Servo driver | 2 sets | Yaskawa Japan |
| 4 | Converter750W | 1set | Danfoss Danmark |
| 5 | Bottle sensor | 1set | Leuze German |
| 6 | Label sensor | 1set | Sick German |
| 7 | PLC | 1 set | Siemens German |
| 8 | Converter 375W | 1set | Danfoss Danmark |
| 9 | Speed governing motor | Panasonic | |
| 10 | Conveyor belt motor | Taiwan wanSHin | |
| 11 | Variable frequency motor | 1pcs | Panasonic Japan |
| 12 | Gear reducer | 1 pcs | Panasonic Japan |
| 13 | Switch power | 1set | Taiwan MW |
| 14 | AC contactor | 1 set | Schenider |
| 15 | Universal changeover switch | 1set | China |
| 16 | Scram switch | 1 set | Schenider |
Options

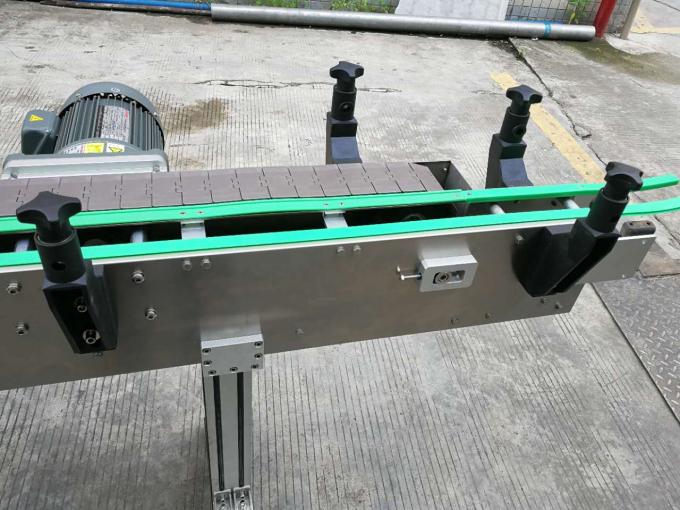

It can provide double line conveyor to connect existing production line ,bottles conveyor to other machine will be not falling down ,picture as following
Tag: automatic labeler machine, bottle labeling machinery
