Beer Bottle Sticker Label Applicator
Detailed Product Description

Driver:ElectricProduction Capacity:5000-8000B/H
Labeling Accuracy:±1mmBottle Width:30-110mm
Label Inner Diameter:76.2mmLabel Outer Diameter:330mm

Big Brand Pudao Wine Labeling Machine / Beer Bottle Label Applicator


1 , Double side labelling machine is suit for round,flat,square,cone shape products inCosmetic,food,pharmaceutical and other light industries.

2 , Labeling on one size one two sides all ok as client need.


1 , Adopt mature technology PLC control system, operation is stable and high-speed.

2 , Touch screen control operating system, simple, and efficient.

3 , Screw adjustment to suppress bottle move accurately.

4 , Synchronization chain mechanism ensure labeling smooth with high precise.

5 , Advanced technology of pneumatic coding system, print the batch number and expiry clearly.

6 , Transmission-type roll label device, make sure the label attached more firmly.

7 , No bottle not labeling, automatic alarm when achieve leakage label.

8 , The whole machine use the material of SUS304 stainless steel and anodized senior aluminum alloy.

Double side labelling machine for square, round, flat bottlle with printer

9 , Double side automatic labeling machine for square bottles or flat bottles with front and back labeling in wine, beverage, water, cosmetic, detergent, food industry

10 , The production capacity 5000-8000B/H

11 , The machine can be adjusted successfully in several minutes for any bottle, because the shape belt can be inclined, and the labeling head can be adjusted at eight orientations .

12, Installed round bottle postion labeling device, can adhesive side or bottom located labeling for round bottle


1 , It can be used stand alone or integrated in-line and matching filling equipment speeds.

2 , Labeling without wrinkle, no bubbles

3 , Machine operation is very simple,easy to understand

4 , Front and back labels are making in seperate labels roller

Technical Parameter

Production efficiency45m/min
Labeling accuracy±1mm
Label max width190mm(can be raised according to the require)
Bottle diameter/width30-110mm Thickness≥30mm height≤500mm
Label inner diameter76.2mm
Labels roll outer diameterMax330mm
Outline size of machineL3048×W1700×1500mm

Product details

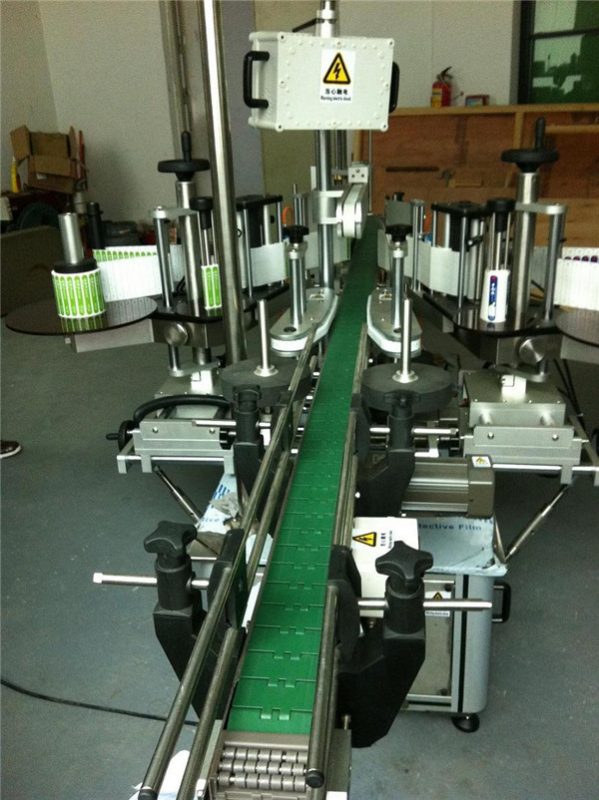

Big Brand Pudao Sticker Label Applicator Wine Labeling Machine / Beer Bottle Label Applicator

Tag: automatic labeler machine, bottle labeler machine
