China CE Sticker Label Applicator , Wine Bottle Labeling Machine Servo Motors Driving supplier
Detailed Product Description

System Of Control:PLC And Servo MotorAir Pressure Range:4-6KG 30L/Min
Material Of Labelling:Plastic/GlassMachine Specification:L2000×W700×1400mm
Label Roll Core:76.2mmLabel Roll Diameter:330mm

CE Bottle Label Applicator , Wine Bottle Labeling Machine Servo Motors Driving

Equipment function characteristics

1 , Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2 , Operation system:The man machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich withthe help function and fault display function.

3 , Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

4 , Send label system: Use SIEMENS high-power servo control system, stable with high speed.

5 , Parameter save:can save 20 groups labeling parameters, when change bottles don't need reset parameters, just adjust machine part is ok.

6 , Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

7 , Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

8 , Labeling way : Use the servo send label system to send label on product surface.

9 , Low voltage circuit all use the German Schneider brand.

Advantages

1 , We has many experienced and professional designers who can provide customized designs of machines for your products according to your requirements.

2 , With professional workers are with at least five years of machine production experience, who help to manufacture high quality of machines for your products.

3 , They will provide professional after sales service.Alsowe have professional engneers who ensures correct manufacturing for the machines according to designs and if the customer needs.

4 , We carry out careful inspection and running and debugging for each machine before they are delivered to the customers, to ensure we maintain the highest customer satisfaction of the machine. Therefore, our company enjoys high level of business credit among our customers in the industry for our high quality of machines delivered.

5 , We provide excellent after sales service for each customer whenever the customer has any question with the machine. And even after they have bought the machines for many years, we still provide necessary help for the machine to run normally.

6 ,If the client needs customized design of machines for your products, please kindly inform us your material viscosity, power voltage, the speed you require, the size of your vessels, etc. We sincerely welcome your inquiry and visit.

Application

Automatic round bottle self adhesive labeling machine can apply to PET round bottle, plastic bottle, glass bottle for product which have circumferential surface, conical surface and square surface. Adhesive labeling machine widely used in food, toy, chemical, cosmetic, medical and plastic industries.

Introduction

1 , The main engine adopts servo motor drive, Delta (Taiwan) PLC control system, Delta (Taiwan) touch-type man-machine interface, God as optical fiber (Japan Keyence) devices and other original imported parts, brings together many leading technologies,

2 , The industry has become one of the products of technological superiority. Microcomputer automatic control, user-friendly touch-screen interface, sophisticated mechanical structure, so that simple, powerful; can achieve the number of labels set, labeling count, print control, labeling control, off standard, Tape and other abnormal conditions such as automatic detection and alarm functions; random capacity display and label quantity management; label elastic adjustment; label length and clearance calculation; host height and position adjustment; optional ribbon coding machine.

3 , Label detection photoelectric sensor sensitivity adjustment. The machine is made of high-quality T6 aluminum alloy and SUS304 stainless steel, work well, in line with GMP norms. MPC-AS vertical adhesive labeling machine is a very cost-effective products.

4 , The different packaging objects into the conveyor belt, the conveyor belt to drive the bottle into the sub-region, the transport mechanism continued to move, depending on the optical fiber to detect the bottle, the optical signal to the PLC, the PLC will be processed after the output The signal is transmitted to the stepping motor, which is marked by the stepping motor. The label is pasted to the bottle through the rolling mechanism. The object after the labeling is conveyed by the labeling machine conveyor belt into the next process or container.

Characteristic

1 , Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular.

2 ,Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.

3 , Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.

4 , Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.

Useage

1, Round bottle labeling is suitable for pharmaceutical, food, cosmetic and other industries, can be attached to the whole week and half circle labeling labeling.

2 , Optional automatic turntable machine, can be directly connected to the front end of the production line, automatic feeding bottle into the labeling machine, increase efficiency.

Service

1 , Range experienced senior engineer come to client company for installation .

2 , If quality problems arise, the supplier provide technical support and timely supply wearing parts.

3 , Supply systematic operation training for client workers.

4 , client used the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.

5 , Guarantees all equipment (except human factors) within one year, lifetime maintenance sevices.

Working principle

1 , The control system is provided with a control system to send out the label and attach to the product to be in the position of the label, the product flows through the marking device, the marking belt drives the product to rotate, the label is rolled and a label attached to the action is completed.

2 , The core work principle: the bottle body will be separated from the product, the sensor detects the product passed, the signal back to the label control system, in the appropriate place.

3 , Operation process: put the product (can be connected line) - > product delivery (equipment automatically realized) - > product range - > Product Detection - Labeling - > cover label - collection has been labeling products.

Scope of application

1 , Applicable labels: self adhesive labels, adhesive film, electronic regulatory code, bar code, etc..

2 ,Applicable products: products that require a label or film on the circumferential surface.

3 , Application industry: widely used in food, medicine, cosmetics, daily chemical, electronic, metal, plastic and other industries.

4 , Application examples: PET round bottle labeling, plastic bottle labeling, food cans, etc..

Apply to

1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

2 , The machine is apply to the Daily Chemical and Food Industry,

3 , Labeling max width is 190mm(can be raised according to the require).

4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm(can be raised according to the require)
Bottle diameterThickness≥30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Weight380KG
Using power220V 50HZ 1500W

Details

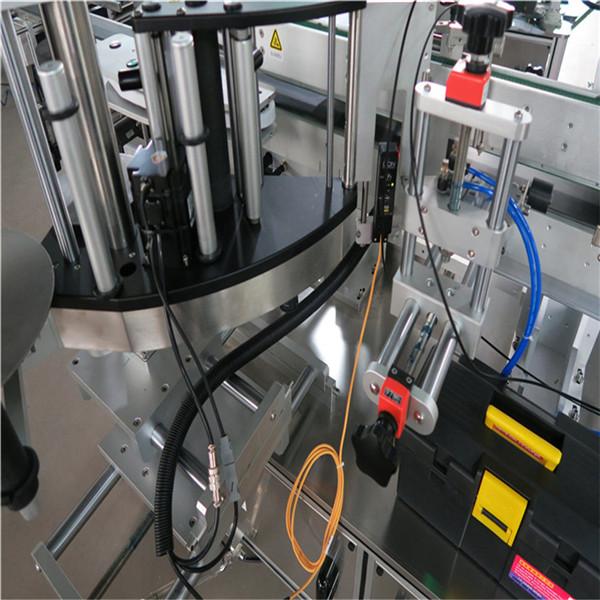

CE Sticker Label Applicator , Wine Bottle Labeling Machine Servo Motors Driving

Tag: bottle labeling machinery, bottle labeler machine
