Plastic Bottles Labeller Equipment
Detailed Product Description

SpeedPoster:45m/minDevice Of Sensor:SICK Sensor
Origin:GuangzhouLabeling Accuracy:±1mm
Label Inner Diameter:76.2mmMaximum Labeling Diameter:330mm

Two / One Side Sticker Label Applicator Glass / Plastic Bottes Labeller Equipment

Product Characteristic

1 , The whole machine adopts a mature technology PLC control system, so that the operation of the machine is stable and high speed.

2 , The operating system adopts touch-screen control, so that the operating is simple and convenient, practical and efficient.

3 , Upgraded dished label station design, can label conical bottle.

4 , Screw adjustment suppressing mechanism, the movement is accurate.

5 , Synchronization chain mechanism to ensure smooth and precise calibration.

6 , Labeling transparent label without bubble, labeling adhesive sticker does not wrinkle.

7 , Widely used, multipurpose with one machine and strong adaptability.


1 , Coding Machine for option, it can print date, lot No. online.

2 , Structure designed simple, smart, easy to maintenance.

3 , Use famous brand motor driven, label supply stable and reliable.

4 , PLC control system, the whole machine work stable with high speed.

5 , Photoswitch inspection to ensure no bottle, no labeling; no label, autocorrection and alarm.

6 , Common diverter is suitable for different diameter of bottles, fast adjustment and locked location.

7 , Labeling speed, convey speed, diverter speed can be adjusted.

8 , Use resilience cotton belt ensure labeling smooth, no fold, improved labeling quality.


1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

2 ,The machine is apply to the Daily Chemical and Food Industry,

3 ,Labeling max width is 190mm(can be raised according to the require).

4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm(can be raised according to the require)
Bottle diameterThickness≥30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Using power220V 50HZ 1500W


1 , Most component are made by aluminumofanodizing3.0 side board,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

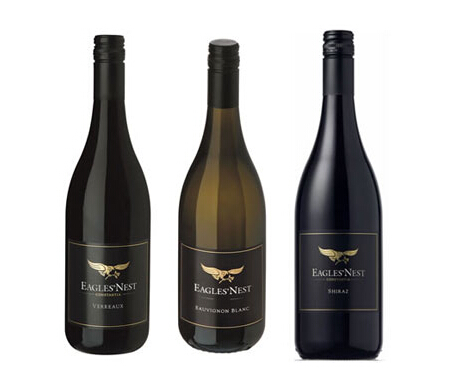

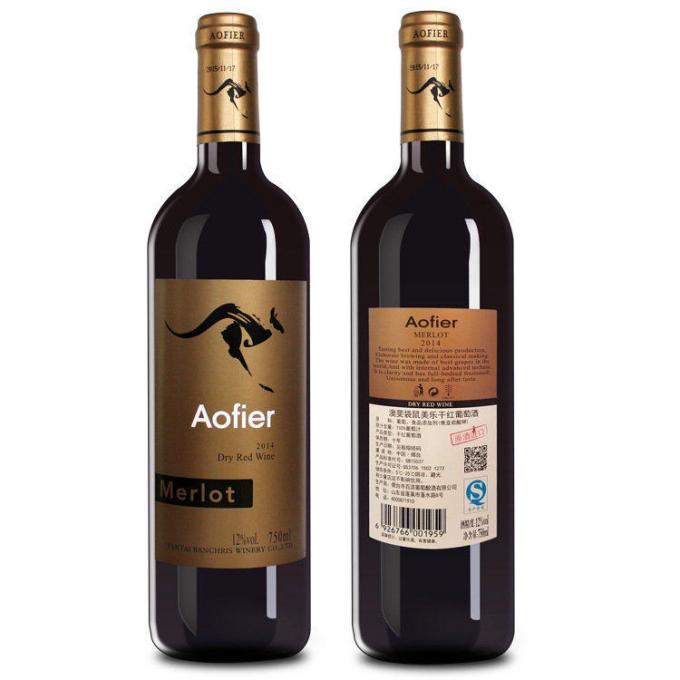

Labeling Samples

Two / One Side Sticker Label Applicator Glass / Plastic Bottes Labeller Equipment

Two / One Side Sticker Label Applicator Glass / Plastic Bottes Labeller Equipment
