Detailed Product Description
| Application Range: | Beverage, Chemical, Commodity, Food, Medical | Main Technology: | Magic Eye Labeling |
|---|---|---|---|
| Production Speed: | 45m/min | Labeling Accuracy: | ±1mm |
| Label Inner Diameter: | 76.2mm | Label Outer Diameter: | Max330mm |

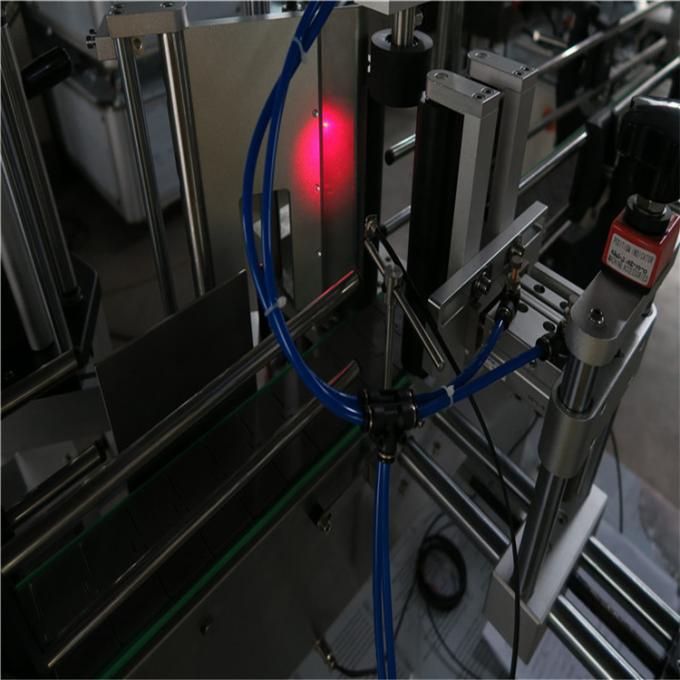

Wine Bottle Label Applicator Machine High-Power Servo Motor , Beer Bottle Labeler
Product Characteristic
1 , The machine is applicable to label cylinder bottles for daily chemicals, beverages, pharmaceuticals etc. Suittable for a single product labeling.
2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.
3 , The machine is particularly applicable to circular label for big round bottles, high repeat accuracy, without air bladder, with special design, no need the structure of separate bottle it makes the system easier, higher effciency.
4 , The range of labels is extended because of high-power servo motor.Solves the common problem of the insufficient strength.
5 , Star Wheel segmentation dish institution; fast speed and high labeling accuracy, really human-machine communication, it is easy to oprate so the worker can operate the machine in several hours.
Technical Parameter
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm(can be raised according to the require) |
| Bottle diameter | Thickness≥30mm height≤500mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L2000×W700×1400mm |
| Weight | 380KG |
| Using power | 220V 50HZ 1500W |
Application
1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.
2 ,The machine is apply to the Daily Chemical and Food Industry,
3 ,Labeling max width is 190mm(can be raised according to the require).
4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.
Advantages
1 , Most component are made by aluminumofanodizing3.0 side board,cutting the weight and cutting the transportation fees.
2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.
3 , The machine’s Using power,dimension,Weight are customized.
Product details
