Beer Bottle Labeling Machine , Round Bottle Labeler
Detailed Product Description

Condition:CustomizedMaterial Of Main Engine:Aluminum
Diameter Of Bottle:Thickness≥30mm Height≤500mmPower Supply:AC380V 50Hz 5.5KW
Labeling Accuracy:±1mmLabel Max Height:195mm

High Production Wine / Beer Bottle Labeling Machine , Round Bottle Labeler

Product Characteristic

1 , Standard speed can reach 60m/min with750W high power,large torque ultra small inertia give mark imported servo motor.

2 , Suitable for the flat bottle,round bottle of single side,double side and square bottles on three sides,surrounded by all labeling.

3 , When production speed can reach 24000 bottles/hour,but with the high speed filling libe wire production,greatly improving the production speed,saving the cost of production.

4 , Product positioning labeling can be realized.Adopt mechanical positioning.the use of the appearance of the container itself shape,looking for anchor point,improve the reliability of the equipment.

5 , Regulation institutions all achieve rapid adjustment,without tools.Headers can be adjusted multidimensional space:header can achieve 8 orientationadjustment,angle adjustment,additional position indicator,accurate positioning adjustment.

6 , All parts of each structure by the numerical control processing,parts with high precision,ensure the accuracy of equipment level.

7 , Using the screw and the star wheel match into the bottle out of the bottle,to ensure high-speed operation,products in and out of the smooth and stable.

Technical Parameter

Power supplyAC380V 50Hz 5.5KW
Labeling accuracy±1mm
Label max height195mm
Labeling capacity50m/min
Bottle diameterhickness≥30mm Height≤500mm
Label paper core’s inner diameter76.2mm
Label external diameter330mm
Overall measurementL1740×W2020×H2100mm
WeightCustomized

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 , The Power supply is AC380V 50Hz 5.5KW,Label max height is 195mm.

3 ,Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

4 , Label paper core’s inner diameter is 76.2mm,Label external diameter is 330mm.

.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 50m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

Product details

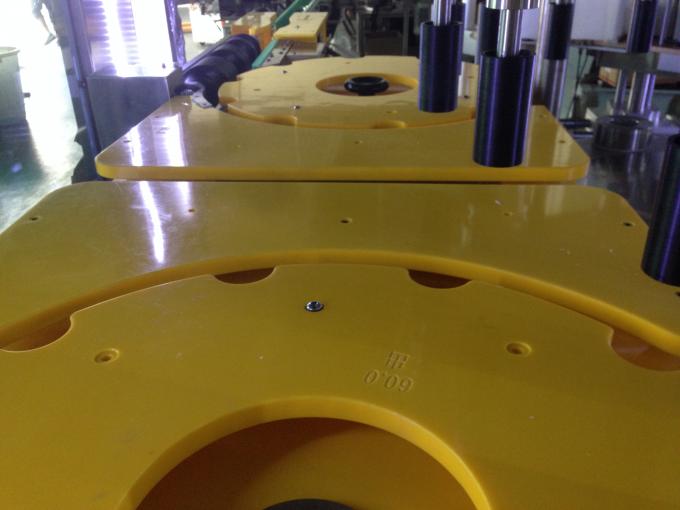

High Production Wine / Beer Bottle Labeling Machine , Round Bottle Labeler

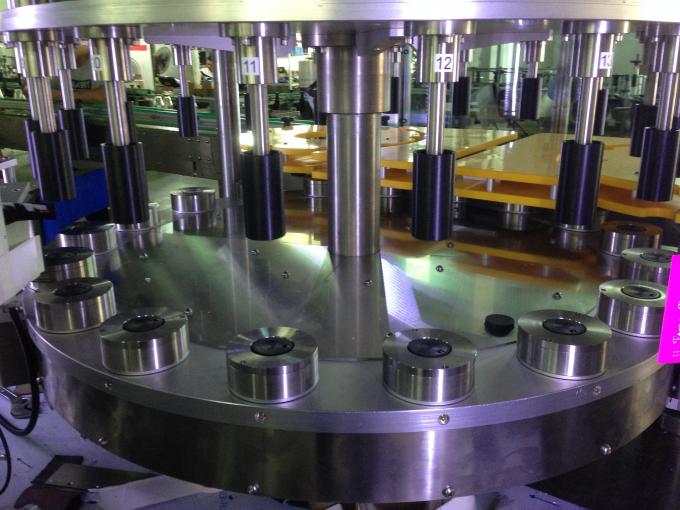

High Production Wine / Beer Bottle Labeling Machine , Round Bottle Labeler

High Production Wine / Beer Bottle Labeling Machine , Round Bottle Labeler



Tag:rotary labeler,automatic label applicator machine
