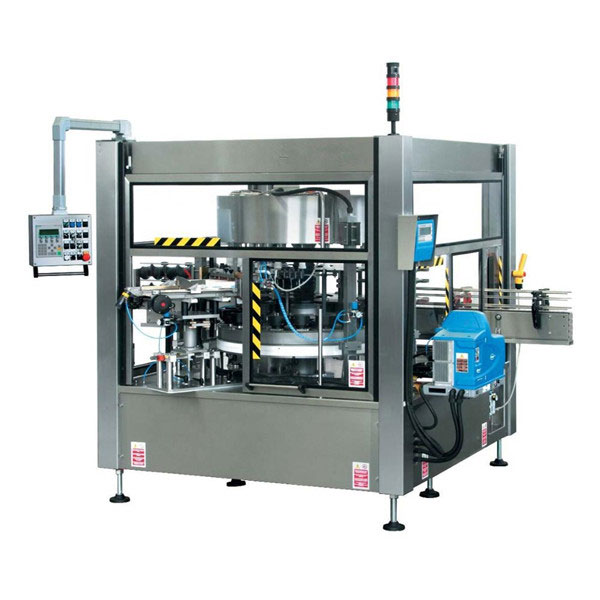

CE Full Automatic Bottle Winged Rotary Sticker Labeling Machine
Detailed Product Description

Condition:CustomizedMain Material:Aluminum
Diameter Of Bottle:According To Bottle SamplesPower Supply:AC380V 50Hz 5.5KW
Labeling Accuracy:±1mmLabel Max Height:195mm

CE Rotary Sticker Labeling Machine Single Full Automatic Bottle Winged

Product Characteristic

1 , Standard speed can reach 60m/min with750W high power, large torque ultra small inertia give mark imported servo motor.

2 , Suitable for the flat bottle, round bottle of single side, double side and square bottles on three sides, surrounded by all labeling.

3 , When production speed can reach 24000 bottles/hour, but with the high speed filling libe wire production,greatly improving the production speed, saving the cost of production.

4 , Headers can be adjusted multidimensional space: header can achieve 8 orientationadjustment, angle adjustment, additional position indicator, accurate positioning adjustment. Regulation institutions all achieve rapid adjustment, without tools.

5 , All parts of each structure by the numerical control processing, parts with high precision, ensure the accuracy of equipment level.

6 , Product positioning labeling can be realized. Adopt mechanical positioning. the use of the appearance of the container itself shape, looking for anchor point, improve the reliability of the equipment.

7 , Using the screw and the star wheel match into the bottle out of the bottle, to ensure high-speed operation,products in and out of the smooth and stable.

Technical Parameter

Power supplyAC380V 50Hz 5.5KW
Labeling accuracy±1mm
Label max height195mm
Labeling capacity50m/min
Bottle diameterhickness≥30mm Height≤500mm
Label paper core’s inner diameter76.2mm
Label external diameter330mm
Overall measurementL1740×W2020×H2100mm
WeightCustomized

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 , The Power supply is AC380V 50Hz 5.5KW, Label max height is 195mm.

3 ,Bottle diameter of Thickness is greater than or equal to 30mm, height is less than or equal to 500mm.

4 , Label paper core’s inner diameter is 76.2mm, Label external diameter is 330mm.

Advantages

1 , Most component are made by aluminum, cutting the weight and cutting the transportation fees.

2 , The production max speed is about 50m/min. Labeling accuracy is ±1mm.

3 , The machine’s Using power, dimension, Weight are customized.

Product details

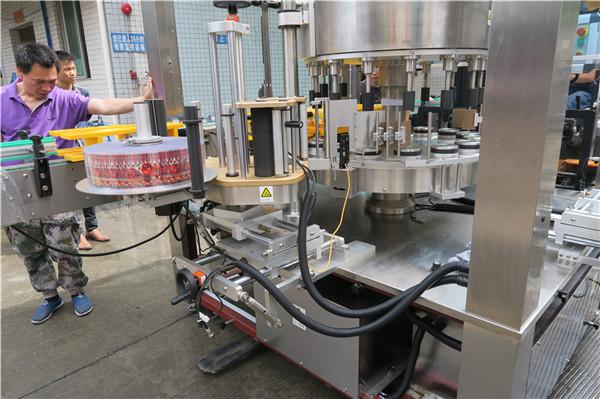

CE Rotary Sticker Labeling Machine Single Full Automatic Bottle Winged
