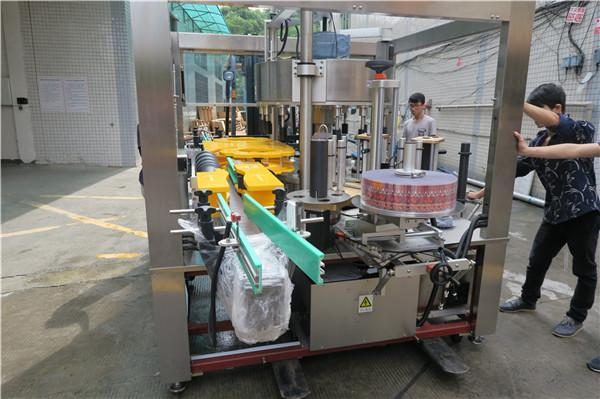

Juice Beer Bottle Onefold Rotary Sticker Labeling Machine
Detailed Product Description

Main Material:AluminumHeight Of Max:195mm
Power Supply:AC380V 50Hz 5.5KWLabeling Accuracy:±1mm
Labeling Type:Rotary And High SpeedFunction:Beverage,Beer,Wine Bottles

Juice Beer Bottle Onefold Rotary Sticker Labeling Machine AC380V 50Hz 5.5KW

Product Characteristic

1 , Wide range of application:It is suitable for the single/double/multi-sides of the round bottle, square bottle and irregular bottle.

2 , The labeling effect is good:The biggest characteristic of this equipment is the imitation of human labeling, completely subvert the traditional way of labeling, thoroughly solved the problem, spherical stick mark wrinkle make possible differentiated product labeling.

3 , High positioning accuracy:Using mechanical rotating positioning, advantage of the characteristics of the bottle itself looking for anchor point, greatly improve the stick mark stability and accuracy.

4 , Easy to adjust:Send the device can be adjusted 8 d, especially suitable for a bottle type of the taper, and change the different size of the product is simple and easy to adjust, need not use tools.to avoid bad labeling affect caused by machine shaking, all direction adjusting modules will be locked after the machine finish adjusting. So it will insure the production process smoothly and the labeling location consistently.

5 , Good stability:

A , Machining parts material guarantee:The machine is made of high quality raw materials. The parts use high quality aluminum, steel and imported nylon.

B , Advanced processing equipment:main parts professional factory uses in all Polytechnic high precision processing to complete, the main parts in the machining process will be used in the highest level of detection methods for quality control, in order to obtain the highest quality and highest-precision parts, reduction of machine vibration at high speeds

C , Using famous brand spare parts.

D , Using world first-class brand electrical accessories.

E , Novel structure. Main designers have more than 10 years design experience in this field. Each component are through strict aging test.

6 , Efficient production:The speed is up to 24000bottle/hour. High speed labeling fluency .It can match front and end seamless butt joint and improve production efficiency.

Technical Parameter

Power supplyAC380V 50Hz 5.5KW
Labeling accuracy±1mm
Label max height195mm
Labeling capacity50m/min
Bottle diameterhickness≥30mm Height≤500mm
Label paper core’s inner diameter76.2mm
Label external diameter330mm
Overall measurementL1740×W2020×H2100mm


1 , The machine is apply to the Daily Chemical and Food Industry.

2 , The Power supply is AC380V 50Hz 5.5KW,Label max height is 195mm.

3 ,Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

4 , Label paper core’s inner diameter is 76.2mm,Label external diameter is 330mm.



1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 50m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

Product details

Juice Beer Bottle Onefold Rotary Sticker Labeling Machine AC380V 50Hz 5.5KW


Tag:automatic label applicator machine,adhesive labeling machine
