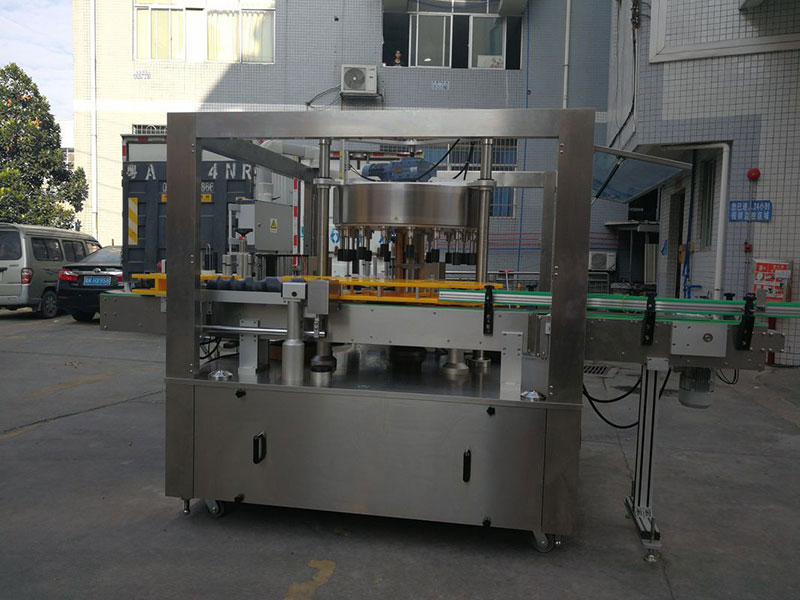

Front / Back Automatic Label Applicator Machine Equipment Speed 18000b/H

Detailed Product Description

Control System:	PLC Touch Screen	Motor:	Servo Motor
Operation Method:	Easy To Operate	Labeling Accuracy:	±1mm
Labeling Type:	Rotary And High Speed	Label Sensor:	Magic Eye
Packaging Material:	Single Size Bottle With Big Quatity	Speed:	18000B/H

Front / back Rotary Sticker Labeling Machine Equipment Speed 18000B/H

Application

1 , This machine is fully automatic rotary self-adhesive labeling machine. Suits for different industries for beer, wine, white spirit, health wine, seasoning, cosmetics, medicine, cans and others.

2 , Suit for Single size bottle with large quantity,need fast labeling speed .

​3, The labeling machine with one set labeling head, suit for front / back /neck labeling for bottles

4, Different bottle size /shape need changing machine parts ..

Technical Parameter

Power supply	AC380V 50Hz 5.5KW
Labeling accuracy	±1mm
Label max height	195mm
Labeling capacity	50m/min
Bottle diameter	according to the samples
Label paper core’s inner diameter	76.2mm
Label external diameter	330mm
Overall measurement	L1740×W2020×H2100mm
Weight	Customized

Instruction

1) for the positioning products, need to note: need make a locating slot in the bottom of bottle, under the condition of non-effect the appearance of bottle, the locating slot at the bottom of the locating slot to as far as possible
Outside depend, located slot at the bottom of bottle is very important, and more equality , not different depth
2) Change different bottle type, need to change parts, the price need discussion, depending on the bottle shape.
(replacement as follows: fence for feeding bottle, star wheel for bottle feeding, middle guide board, bottle base, star wheel for bottle coming out )

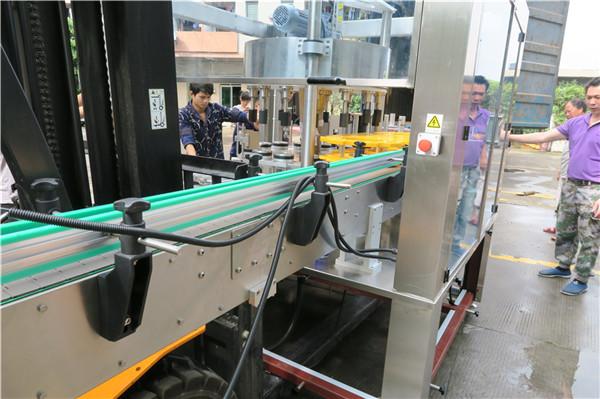

Product details

Tag: rotary labeler, adhesive labeling machine
