Odm Plastic Bottle Labeling Machine With Plc And Touch Screen
Detailed Product Description

Warranty Of Equipment:12 MonthsOEM & ODM:Labeling Machine
Control System:PLC And Touch ScreenName Of Machine:Self Adhesive Labeling Machine
Specification:3048mm X 1700mm X 1600mmLabeling Packaging:Glass Bottle ,plastic Bottle ,container
Applications Area:Bevarage/Drinks/Daily Chemical

Automatic Front / Back with Orientated Round Bottle Labeling System

​Suitable for

1 , Suitable for three kinds of bottle shape (round, square, flat etc.), makes two labels and orientation labeling requirement possible. Speed up to 60 bottles per minute for orientation labeling; two labels and common flat / square bottle labeling speed up to 200 bottles per minute. (up to bottle size and label size)

2 , Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H, max label high 168mm (accept custom)

3 , Using 82.6 mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle,round bottle,square bottle and some irregular bottles

4 , Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment

5 , Ribbon date printer and injek printer for options

6 , Labeling all kinds of bottles ,only need to adjust machine

7 , For oval bottle, only need to adjust oval bottle labeling device.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Feature

1 , This labeling machine is made of SS 304 and high-class alloy, the controlling system adopts advanced PLC with touch screen.

2 , Unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automaticity

3 , This machine can stick Double Sides Lables on various olive, round, squarel objects, bottles, jars, boxes, hardwares, etc

4 , This labeling machine can work independently, and can be installed on any product lines, work with automatic filling machine, capping machine, coding machine, etc.

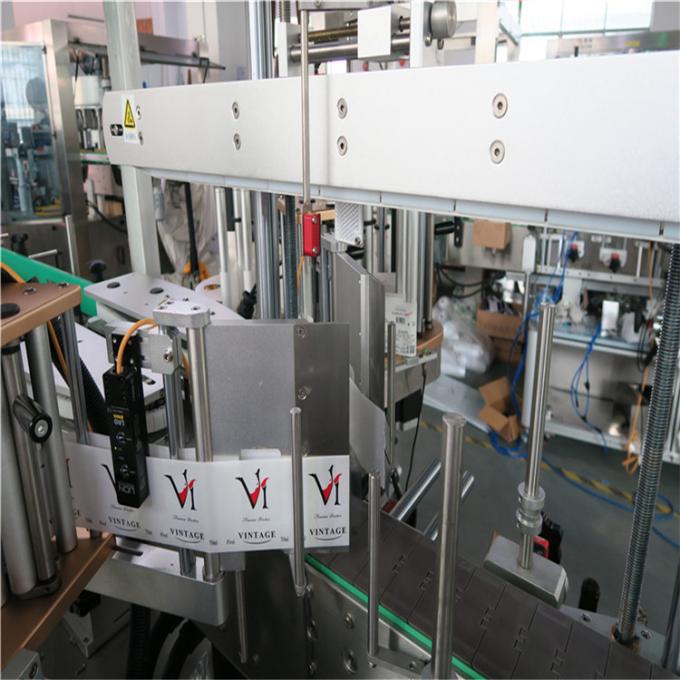

Machine details picture

OEM / ODM Plastic Bottle Labeling Machine with PLC and touch screen

Tag: water bottle label printing machine, sticker applicator machine
