Plastic And Glass Bottles Automatic Double Side Sticker Labelling Machine

Detailed Product Description

Type:	Labeling Machine	Height Of Product:	30-280mm
Thickness Of Product:	20-200mm	Height Of Label:	5-150mm
Length Of Label:	25-300mm	Accuracy Of Labeling:	±1mm
The Inner Of Label Roller:	76mm	Compressed Air Consumption:	5Kg/cm2
Size Of Machine:	2800(L)×1450(W)×1360(H)mm

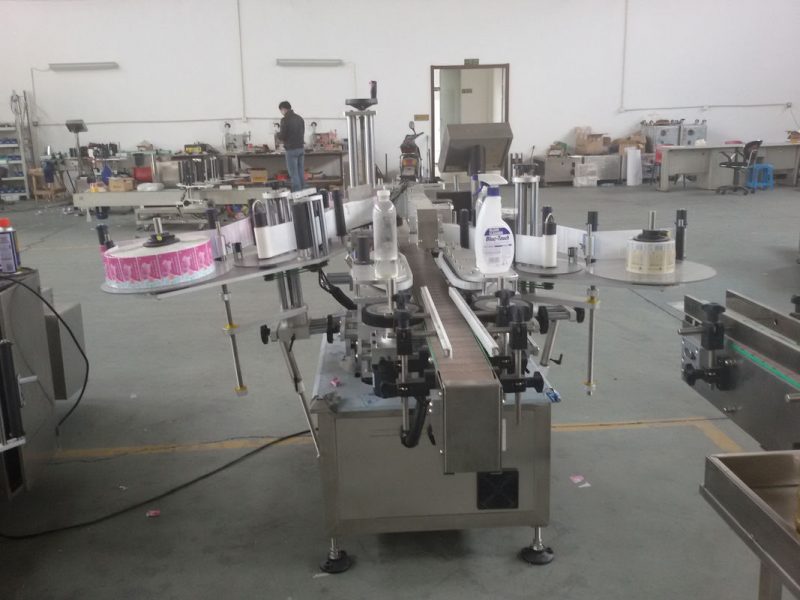

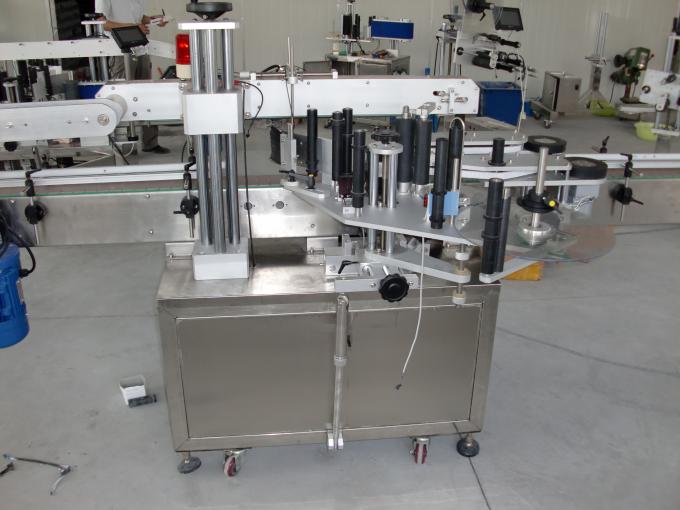

Plastic and glass bottles PLC control automatic double side sticker labelling machine servo motor

Quick Details:

Automatic Grade: Automatic

Driven Type: Electric

Power Supply: 220V 3.5KW Single-phase 50/60HZ

Height of Object: 30-350mm

Applicable Diameter of Bottle Body: 20-120mm

Height of Label: 5-180mm

Place of Origin: Shanghai,China(Mainland)

Size of Labeling Machine: 2800(L)×1650(W)×1500(H)mm

Weight: 450Kg

Label roller outside diameter: 420mm

After-sales Service: Provided engineers available to service machinery overseas

Labeling Speed: 60-350bottles/min

Application:

The labeling Machine is suitable for all kinds of regular and irregular containers, flat surface or round bottles, especially ideal for flat surface and square containers.

Other labeling machines:

LABELING MACHINE SIZES	LABELING SPEED	CONTAINER	WEIGHT
2800(L)×1650(W)×1500(H)mm	60-200PCS/MIN	double sides round or square cans bottles	250kg
1600(L)×550(W)×1600(H)mm	20-200PCS/MIN	flat surface boxes paper cans	150kg
440(L)×250(W)×600(H)mm	20-50pcs/min	semi-auto flat boxes cans	25kg
2000(L)×1100(W)×1300(H)mm	20-200pcs/min	round bottles cans	150kg
2000(L)×1100(W)×1250(H)mm	20-40pcs/min	fixed position round bottle	150kg
570(L)×250(W)×500(H)mm	20-50pcs/min	semi-auto round bottle cans	25kg
2500(L)×1250(W)×1750(H)mm	60-500pcs/min	horizontal small round bottle	150kg

Tag: bottle sticker labeling machine, automatic label applicator machine
