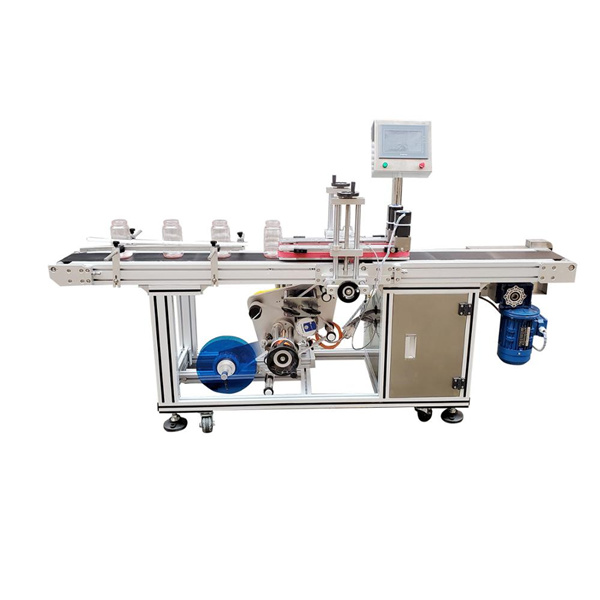

Self Adhesive Sticker Bottom Labeling Machine Automatic Electric Driven Type
Detailed Product Description

Function:Top LabelingLabel Type:Sticker / Self Adhesvie
Driven Type:ElectricProduction Speed:1-50m/min
Labeling Precision:±1mmLabel Height Max.:100mm
Weight:180KGUsing Voltage:220V 50HZ 1500W

Full Automatic Self Adhesive Sticker Bottom Labeling Machinery​

Technical Parameters

Production speed1-50m/min
Labeling accuracy±1mm
Label max width130mm
Label inner diameter76.2mm
Label outer diameter330mm
Outline sizeL2000×W700×1400mm
Using power220V 50HZ 1500W
Bottle diameter30-110mm

Product Characteristic

1 ,Bottom labeling equipment works much like a top labeler except that the labeling head is mounted underneath a split belt conveyor. With great accuracy and ease of use bottom labelers can label the underside of a wide range of products.

2 ,The famous high precise serve motor drives the labeling head and controls to convey the labels

The separated clutch makes the strain more balanced.It ensures accurate labeling

3 , The controlling system adopts SIMEMS and famous panel,the human interface can be operated in Chinese and English

4 ,It is convenient to adjust the labeling head,labeling speed is automatically synchronized with conveyor speed to ensure precisely labeling.

5 , Labeling dynamic entrainment institutions: clamp the product and apply label on product to improve labeling precison

Labeling organizations

Labeling head 6-dimensional space adjustment, the angle can be adjusted labeling, easy to paste all kinds of special products;

Elastic or flexible scraper brush, sponge roller extrusion without power, to ensure smooth labeling;

Machine used to strengthen the rigidity of the mechanical structure design, simple, stable
