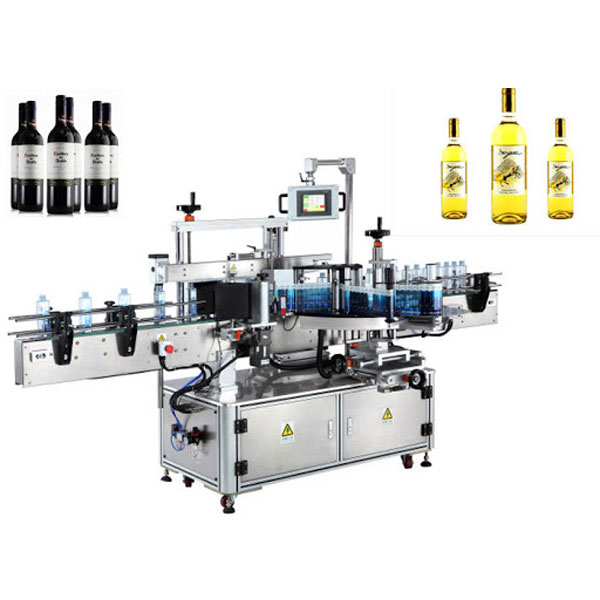

Wine Bottle Labeler Machines For Red Wine Bottle Front And Back Side

Detailed Product Description

Driver:	Electric	Production Capacity:	5000-8000B/H
Labeling Accuracy:	±1mm	Bottle Width:	30-110mm
Label Inner Diameter:	76.2mm	Label Outer Diameter:	330mm
Dimension:	L3048×W1700×1500mm	After Sales:	Overseas Service

Wine Bottle Labeler Machines For Red Wine Bottle Front And Back Side

Technical Parameter

Production efficiency	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter/width	30-110mm Thickness≥30mm height≤500mm
Label inner diameter	76.2mm
Labels roll outer diameter	Max330mm
Outline size of machine	L3048×W1700×1500mm
Weight	580KG

Product Characteristic

1 ,Double side automatic labeling machine for square bottles or flat bottles with front and back labeling

2 ,The machine capacity 5000-8000B/H

3 , The machine can be adjusted successfully in several minutes for any bottle,becausethe shape belt can be inclined,and the labeling head can be adjusted at eight orientations .

4 , Front and back labels are in seperate labels roller

5 , Installed round bottle postion labeling device, can adhesive side or bottom located labeling for round bottle

Application

1 , The machine is apply to the Daily Chemical and Food Industry,

2 , Labeling max width is 190mm(can be raised according to the require),Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm, Label inner diameter is 76.2mm,max outer diameter is 330mm.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.The machine’s Using power,dimension,Weight are customized.

Tag: wine label applicator, wine bottle labeler
