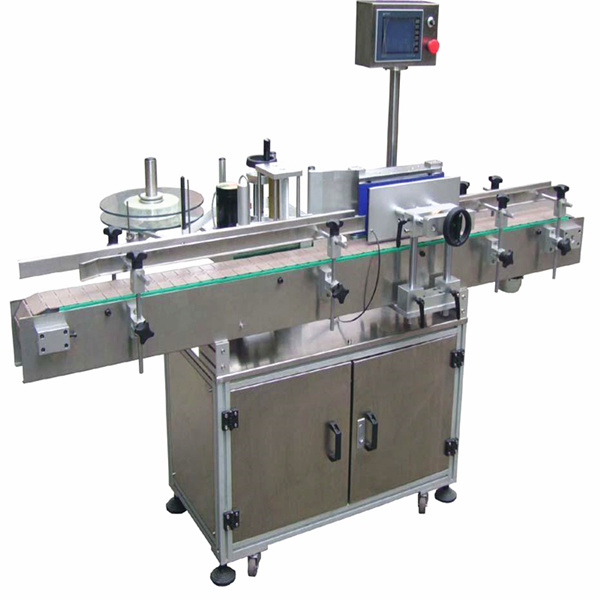

Front Side Square Bottle Labeling Equipment
Detailed Product Description

Function:Sticker LabelingAccuracy Labeling:±1mm
Driven Type:ElectricBottle Diameter/width:30-140mm
Manufacture Speed:200BS/MinLabel Max Width:190mm
Packaging:Woodcase With PE FirmWarranty:One Year
Machine Size:3048mm X 1400mm X 1650mm

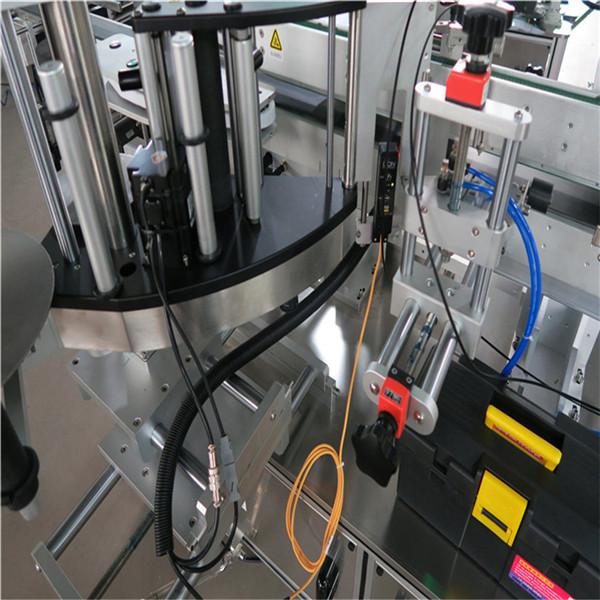

Front Side Square Bottle Labeling Machine / Equipment with Re - orientation

Front Side Labeling System with Re-orientation for Square-wrapping

Application for

1 , Suitable for three kinds of bottle shape (round, square, flat etc.), makes two labels and orientation labeling requirement possible. Speed up to 60 bottles per minute for orientation labeling; two labels and common flat / square bottle labeling speed up to 200 bottles per minute. (up to bottle size and label size)

2 , Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles. The speed is around 2500B/H, max label high 168mm (accept custom)

​Installed square bottle wrap around device ,can apply one label with multi-faces of square bottle

3 , Using 114.6 mm chain board width ,applications to bottle diameter / width 30-140mm for flat bottle, round bottle, square bottle and some irregular bottles

4 , Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment

5 , Ribbon date printer and injek printer for options

6 , Labeling all kinds of bottles ,only need to adjust machine

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-140mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Description

1 ,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

2 ,Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.

3 ,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.

4 ,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.

5 ,.Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.

6 ,The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function

7 , The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral

8 , Special elastic pressing equipment ensure seeding materials stability

9 , Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste

10 , Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed

11 , The machine has the advantages of simple structure, compact structure, convenient operation and maintenance

Front Side Square Bottle Labeling Machine / Equipment with Re - orientation
