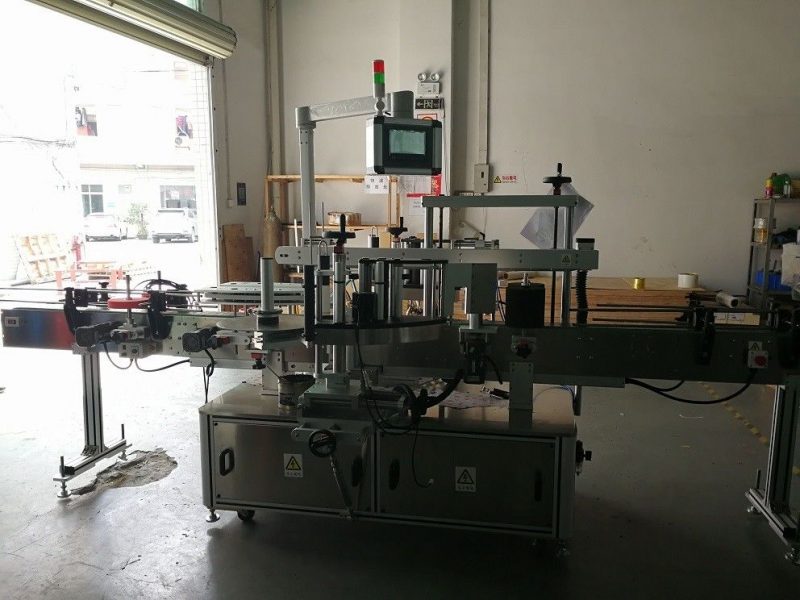

China Two Sides Square Bottle Labeling Machine High Precision 50HZ supplier
Detailed Product Description

Capacity / H:Round Bottle 2500B/H Around , Flat Bottle 6000-8000B/HLabeling Precision:±1mm
Label Height Max.:190mmLabeling Head:Can Adjust The Angle
Size Of Equipment:3048mm X 1700mm X 1600mmApplication Label:Adhesive Labels
Labeling Field:Bevarage/Drinks/Daily Chemical

Two Sides Square Bottle Sticker Labeling Machine With Personal Care Products


There are two sides of labeling machine with two label head. can sticker the front and back labels on bottle.

1. It can label one side of round bottles, the one side, two sides or three sides of square bottles, or single or double sides of flat bottle, with wide application and strong suitability.

2. Synchronous chain correcting mechanism ensures the stable and accurate correction.

3. It ensures that transparent labels have no air bubbles and adhesive labels have no folds in labeling.

4. Servomotor ensures extremely high speed and excellent stability.

5. High precision, no air bubbles on transparent labels, and wide application to one side, two sides or three sides of different vessels.

6. Labeling speed is only for reference, and should depend on different bottle shapes and label size, subject to actual test.

7. Custom-made label for bottle with special specifications is available.


1. This machine suit for double sides labeling of the square bottle,flat bottle and round bottles with stickers (when the label size is not over 1/3 girth of round bottle) speed 6000-8000B/H

2. Installed three rollers type round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,Adhesive position labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3. Using conveyor chain board width 82.6mm, application to diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles

4. Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment (PATENT NO. ZL 2013 2 0634848.0)

5. We can provide ribbon date printer and injek printer for options

6. When you have a lot of kinds of bottles,when labeling,only need to adjust institution

7. If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution easy to opearate

We can also design according to your requirement

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Labeling device

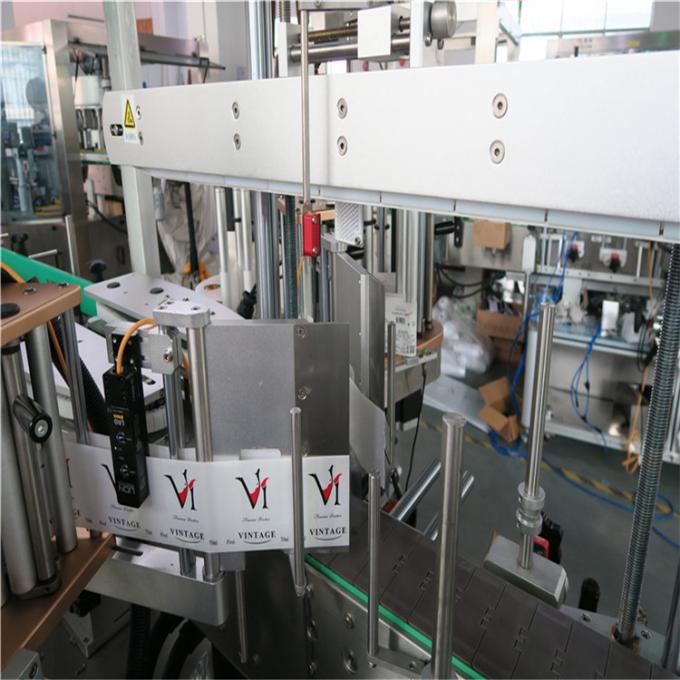

Two Sides Square Bottle Labeling Machine High Precision 50HZ
