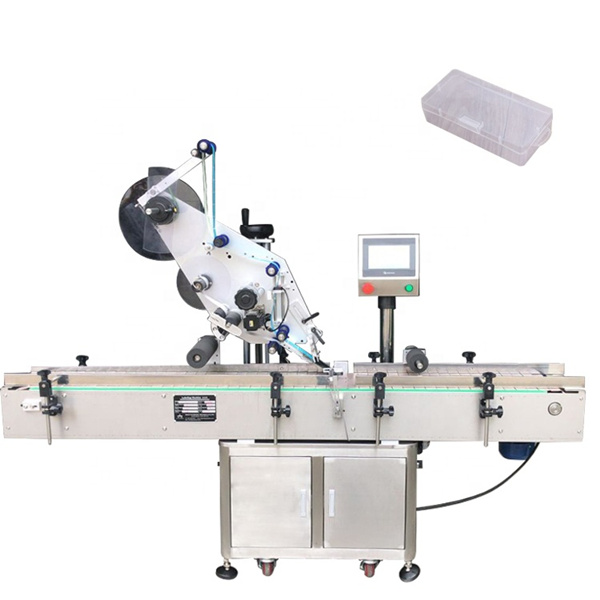

Single Side Square Bottle Labeling Machine
Detailed Product Description

Bottle Type:Round Bottle/Square BottleDriven Type:Electric
Automatic Grade:Full AutomaticProduction Speed:200BS/min
Labeling Accuracy:±1mmLabel Max Width:190mm
Bottle Diameter:Thickness≤30mm Height≤500mmUsing Power:380/220V 50HZ 2300W

Single Side Square Bottle Labeling Machine For Beverage / Daily Chemical Industry

Technical Parameters

Production speed200BS/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameterThickness≤30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL23048×W1200×1500mm
Weight280KG
Using power380/220V 50HZ 2300W

Product Characteristic

1 , Be applicable to square bottles or flat bottles in single side mark.

2 , The independently shape structure is designed specially and independently to label irregular bottles in cosmetic industry. The option air driving and roller labeling set can label round bottles precisely.

3 , The shape belt can be inclined,and the labeling head can be adjusted at eight orientations,so the machine can be adjusted successfully in several minutes for any bottle.

4 , The machine apply the famous server motor,so it realizes real closed loop controlling and it avoids the phenomemnon of the ordinary stepper encoder.All this is designed to improve the accuracy.

5 , The shape structure is designed specially,so labeled thing is able to be located and labeled precisely.

6 , The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rollers.So when the label is stuck it hasn’t any air bladder,It is especially applicable to the crystal bottles labeled with transparent labels.

Application

1 , The machine is apply to the Daily Chemical and Food Industry,Labeling max width is 190mm.

2 ,Label inner diameter is 76.2mm,max outer diameter is 330mm.

3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 200BS/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

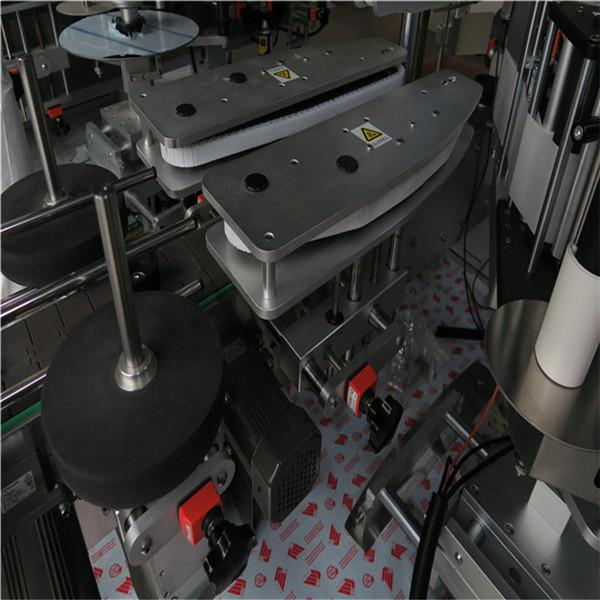

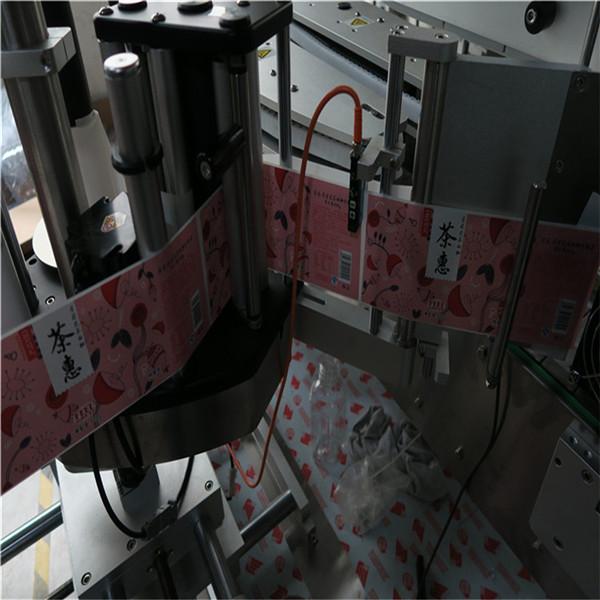

Product's detail

Single Side Square Bottle Labeling Machine For Beverage / Daily Chemical Industry

Single Side Square Bottle Labeling Machine For Beverage / Daily Chemical Industry

Tag: square bottle label applicator, jar labeling machine
