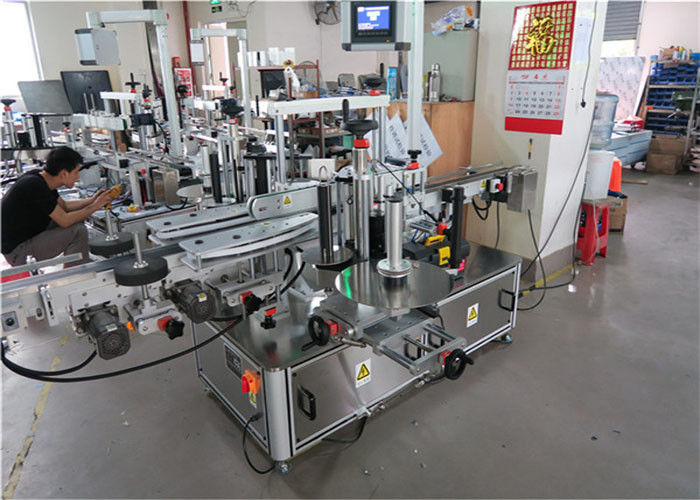

Square Bottle Automatic Label Applicator Machine One Label Four Sides

Detailed Product Description

Bottles:	Round Bottle/Square Bottle/flat	Driven Type:	Electric
Automatic Grade:	Full Automatic	Production Capacity:	4000-8000B/H
Labeling Accuracy:	±1mm	Label Max Width:	190mm
Bottle Size:	30-110mm	Power Of Machine:	380/220V 50HZ 2300W

Square Bottle Automatic Label Applicator Machine One Label Four Sides

Product Characteristic

1 , Be applicable to square bottles or flat bottles in single side labeling , one label of multisurface of square bottle.

2 , Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

3. Labeling way : use the servo send label system to send label on product surface.

4. Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

Machine most important features

1 . Spare parts making stickly according to food savety

2 , Share parts with high precision processing

3 , Each labeling head use one control system,labeling more stable

4 , Using new style machine head (patent design),convient to adjust,new design,good stability

5 , Advanced control system program, high precision of label stop

6 , Main parts used imported brand,increase stablitily and durable of machine

7 , Strickly according to your requirement,including material

8 , Change different size bottles,only need to adjust the machine

Technical Parameters

Production speed	200BS/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter/width	30-110mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L23048×W1200×1500mm
Weight	480KG
Using power	380/220V 50HZ 2300W

Application

1 , The labeling machine is for Daily Chemical and Food Industry,Labeling max width is 190mm.

2 ,Label inner diameter is 76.2mm,max outer diameter is 330mm.

3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.

Tag: square bottle label applicator,jar labeling machine
