Detailed Product Description
| Bottles: | Round Bottle/Square Bottle/flat | Driven Type: | Electric |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Production Capacity: | 4000-8000B/H |
| Labeling Accuracy: | ±1mm | Label Max Width: | 190mm |
| Bottle Size: | 30-110mm | Power Of Machine: | 380/220V 50HZ 2300W |

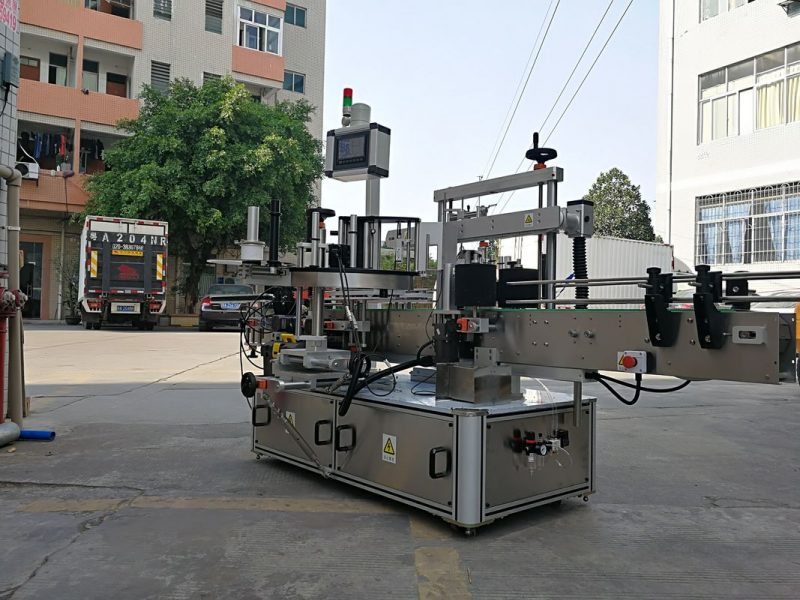

High-speed automatic square bottle three sideslabeling machine with single label
Product Characteristic
1 , Be applicable to square bottles or flat bottles in single side labeling , one label of multisurface of square bottle.
2 , Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.
3. Labeling way : use the servo send label system to send label on product surface.
4. Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
machine most important features
1. Spare parts making stickly according to food savety
2 , Share parts with high precision processing
3 , Each labeling head use one control system,labeling more stable
4 , Using new style machine head (patent design),convient to adjust,new design,good stability
5 , Advanced control system program, high precision of label stop
6 , Main parts used imported brand,increase stablitily and durable of machine
7 ,Strickly according to your requirement,including material
8 ,Change different size bottles,only need to adjust the machine
Technical Parameters
| Production speed | 200BS/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter/width | 30-110mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L23048×W1200×1500mm |
| Weight | 480KG |
| Using power | 380/220V 50HZ 2300W |
Application
1 , The labeling machine is for Daily Chemical and Food Industry,Labeling max width is 190mm.
2 ,Label inner diameter is 76.2mm,max outer diameter is 330mm.
3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.
Labeling system
Tag: square bottle labeler, jar labeling machine
