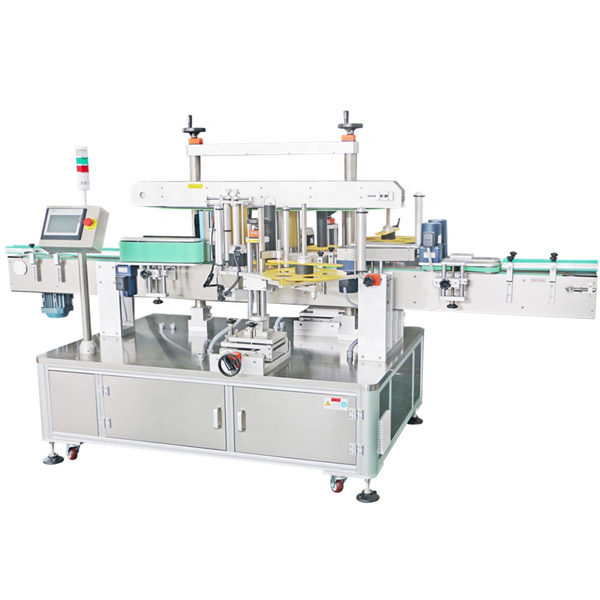

Front And Tower Double Wrap Round Labeling Machine
Detailed Product Description

Product Of Material:Most Aluminum And Stainless SteePlace:Shanghai,China
Bottle Application:Plastic,GlassSpeed:250BS/Min

Neck / front and tower double wrap round Bottle Label Applicator Machine​


1 , The machine is apply to the Daily Chemical, Medicineand Food and beverage Industry,

2 , The labeling machine stickneck and frontlabels in aline ofone bottle,neck label wrap around labeling, tower bottle with double wrap around labeling. round bottle labeling

3 ,Speed 4000-8000B/H (up to bottle size and label size)

4 , Labeling height for side labeling 190mm, wrap around for neck label less than 125mm

5, Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm,

6, Changing different size bottles ,no need to changing the part,only need to adjust the labeling machine .

Technical Parameter

Production speed4000-8000B/h
Labeling accuracy±1mm
Label max widthNeck label125mm front back label190mm
Bottle diameterThickness≥30mm Height≤500mm
Label inner diameter76.2mm
Label outer diameter400mm
Outline sizeL4080 W1200×1600mm
Weight of labeling equipment650KG
Using power of machine380V/220V 50Hz 6500W

Product Characteristic

1 , Ensure accurate positioning is attached to objects, to achieve accurate labeling the shaping mechanism with special design.

2 ,Adhesive Labeler,suit for neck, front, back labels of round bottle with one time finishing the labeling.

3 ,The pressure between the driving shaft and roller is adjustable, when is the labels are running, the direction can be adjusted arbitrarily, rather than the ordinary elastic pressing.

4 ,Double compression rollers structure,ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury,sectional type clutch makes tension more balanced.

5 ,The machinecan install special institution,realize neck label wrap aound labeling,front and back labels for square,flat bottle at one finish.

6 ,From famous factoryservo motor, realize the closed loop control to avoid the general stepping motorthe blind phenomenon, high precision subdivision, built in absolute value encoder all this in order to provide high accuracy.

7 ,The new type lebeling head,the eight dimension adjustment, for special angle products,only need to adjust angle,easy operation and convenient.

Product Details

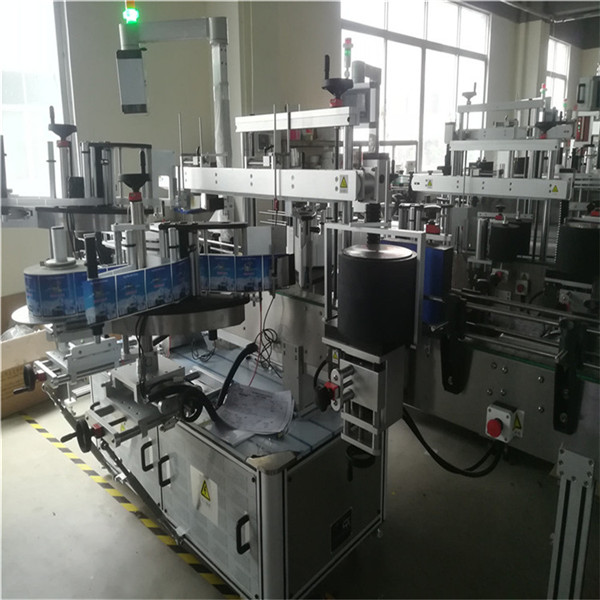

Sticker applicator machine , Neck / front and tower double wrap round Labeling Machine
