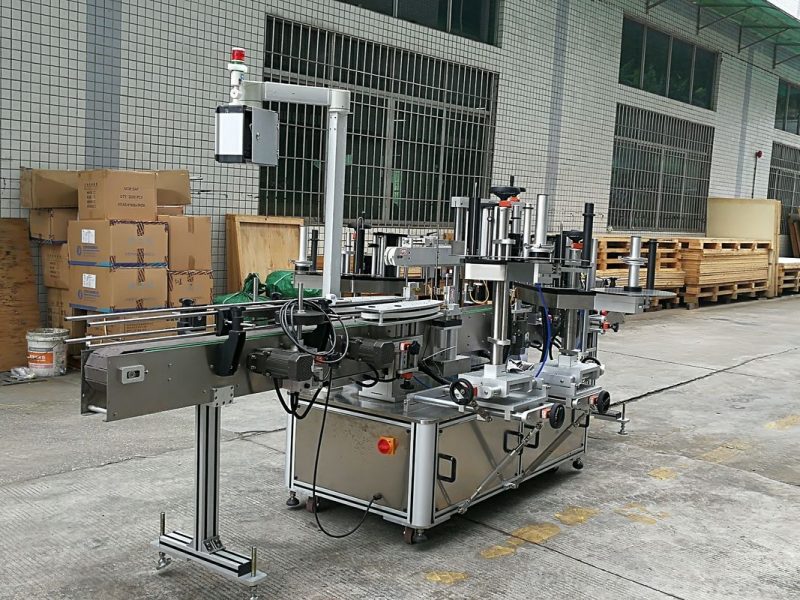

China CE Glass Bottle Labeling Machine , Sticker Front And Back Labelling Machines For Round Glass Bottles supplier
Detailed Product Description

Machine Speed:Round Bottle 2500B/H Around , Flat Bottle 6000-8000B/HLabeling Precision:±1mm
Label Height Max.:190mmMachine Type:Adhesive Labeling Machine
Outer Of Equipment:3048mm X 1700mm X 1600mmPackaging Material:Adhesive Labels
Domain:Bevarage/Drinks/Daily Chemical

Sticker Front And Back Labelling Machines For Round Glass Bottles


1 , This machine suit for front and back labels of the square bottle,flat bottle and round bottles (when the label size is not over 1/3 girth of round bottle) at one time , capacity per hour 6000-8000B/H

2 , Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and somecone bottles

3 , It can install wrap arround bottle device (larger roll type),realize round bottle high speed labeling

4 , We can provide solution according to your existing production space and labeling requirement

5 , Can quickly switch to a different size bottle , simple to cooperate,orderliness beautiful, clean, easy to wash

6 , Applicable to all industries single side labeling of bottle such as daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical and so on.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Special Note

1 , During machine production,the buyer need provide lots bottles and labels rollers to manufacturer for machine test

2 , Bottle surface must be cleaning ,without water drop or other material

3 , For cone bottle,labels must be making accoring to cone surface strickly

4 , We can provide double line connector or clamping bottle connector for options

Tag: glass jar labeling machine, small bottle labeling machine
