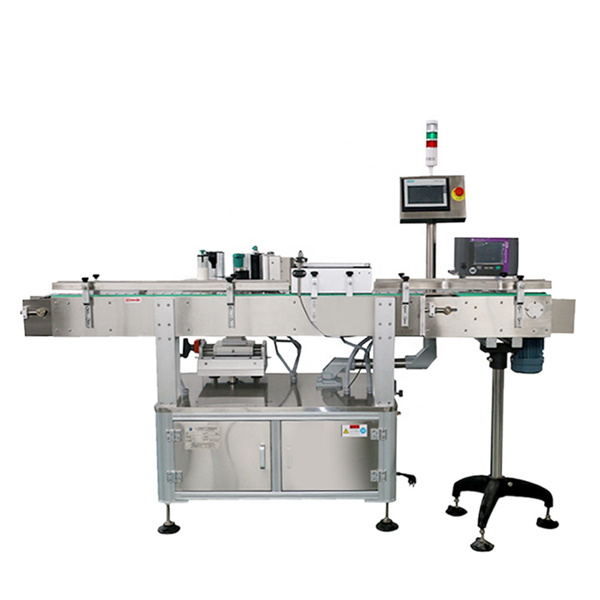

Glass Bottle Label Applicator Single Side Automatic Labeler Machine
Detailed Product Description

Model:Round Bottle LabellerClassification:Automatic
Labelling Packaging:Plastic/GlassSpecification:L2000×W700×1400mm
Label Roll Core:76.2mmLabel Roll Diameter:330mm
Power Supply:220v 110v 380v

Glass Bottle Label Applicator Single Side Automatic Labeler Machine


1 , The labeler is for one label wrap around of round bottle

2 , Various parameters can be input by touch screen interface.

3 , The machine will automatically display and monitor the working status after operation.

4 , The machine is easy to operate.

5 , The machine can be adjusted to the best results according to the diameter of the bottles and the length of the label.

6 , It is widely used in many industries such as medicine, food, cosmetics, pesticide, health products etc.


1. All labeling machines are made of SUS304 stainless steel

2. Labeling machine can be equipped bottle feeding table

3. Labeling machine avoid many problems of labor labeling, skew labeling, bubble, wrinkle, irregular labeling etc

4. Labeling machine equips electric-eye to improve the precision for cutting off the label materials.

5. Labeling machine adopts equivalent PLC, positioning module,servo motor and sensor electrical control system control.


1, Round bottle labeling is suitable for pharmaceutical, food, cosmetic and other industries, can be attached to the less than one circle labeling and half circle labeling labeling.

2 ,Optional automatic turntable machine, can be directly connected to the front end of the production line, automatic feeding bottle into the labeling machine, increase efficiency.

Scope of application

1 ,Applicable labels: self adhesive labels, adhesive film, electronic regulatory code, bar code, etc..

2 ,Applicable products: products that require a label or film on the circumferential surface.

3 ,Application industry: widely used in food, medicine, cosmetics, daily chemical, electronic, metal, plastic and other industries.

4 ,Application examples: PET round bottle labeling, plastic bottle labeling, food cans, etc..


1 ,Range experienced senior engineer come to client company for installation .

2 ,If quality problems arise, the supplier provide technical support and timely supply wearing parts.

3 ,Supply systematic operation training for client workers.

4 , client usedthe machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.

5 ,Guarantees all equipment (except human factors) within one year, lifetime maintenance sevices.

Apply to

1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

2 ,The machine is apply to the Daily Chemical and Food Industry,

3 ,Labeling max width is 190mm(can be raised according to the require).

4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm(can be raised according to the require)
Bottle diameterThickness≥30mm height≤500mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Using power220V 50HZ 1500W


1 , Most component are made by aluminum for anodizing 3.0 sideboard,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min. Labeling accuracy is ±1mm.

3 , The machine’s Using power, dimension, Weight are customized.

Tag: glass jar labeling machine, automatic bottle labeling machine
