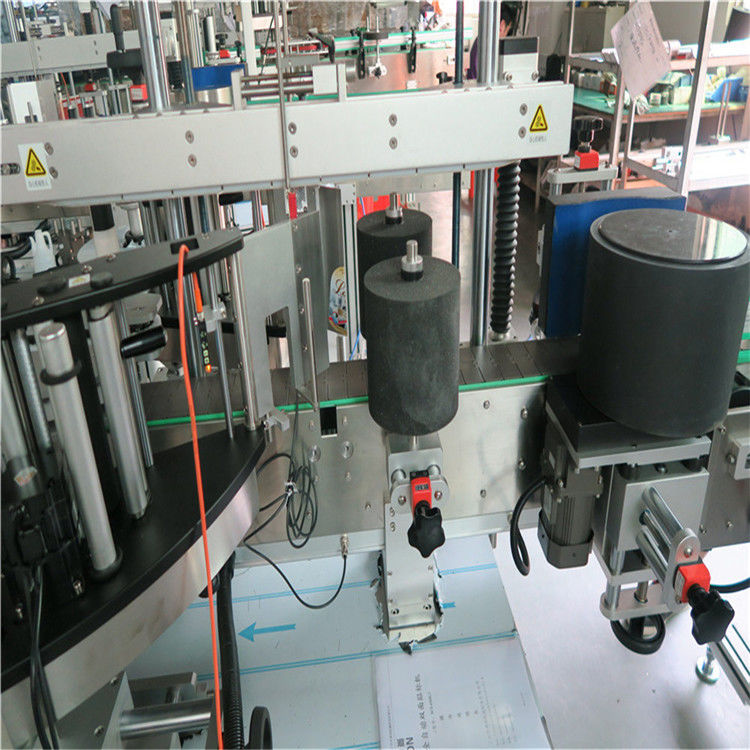

Automatic Glass Bottle Labeling Machine For Australia / Chile Wine Glass Bottle

Detailed Product Description

Labeling Form:	Full Automatic	Inner Diameter:	76.2mm
Outer Diameter:	330mm	Options:	Adhesive Labels Bottles
Motor:	Imported Motor	The Method Of Label:	Single Sided/Double Sided

Automatic Adhesive Labeling Machine For Australia / Chile Wine Glass Bottle

Product features

1 , Flexible operation, can realize the double header and header used alone or single labeling.

2 , Powerful, can achieve round bottle products different locations for site directed labeling, a single header flexible conversion paste standard single, double, double header can be affixed to a number of labels. Matching circumferential positioning detection device can be achieved in the circumferential coverage of the labeling, positioning and labeling functions.

3 ,Label overlap is high, configuration coping mechanism, combined with 3 axis positioning mechanism, eliminate fluctuations on the bottle, improve the accuracy of labeling.

4. Automatic bottle and bottle distributing mechanism using spring-loaded, effectively eliminate the bottle itself caused by the error of the bottle is not smooth, improve the stability.

5. Touch screen control, human-computer interaction interface with the operation of the teaching function, parameter modification intuitive and clear, a variety of simple functions.

6 , Function is powerful, one machine which can realize four products are single-sided and double-sided labeling (round and flat bottles, square bottles, special-shaped bottle)

7 , Adopted the double side rigid plastic synchronous guide chain,automatic calibration for bottles,lower requirements for feeding bottle manually and docking assembly line into the bottles,Greatly reduce workers job or pipeline docking difficulty, can be stand-alone production, also can meet production line

8 , Pressure type coping mechanism, to ensure product delivery smoothly, and effectively eliminate bottle of high error in itself

9 , Should function auto completion cent bottle,Guide before the bottle automatically separated spacing, ensure the follow-up bottle, conveying and stick mark stability

10 , Intelligent control, automatic photoelectric tracking, have any label, no standard automatic correction and label automatic detection function, avoid the waste of label and leakage; Main material is made of stainless steel equipment and advanced aluminum alloy, in line with the GMP standard production, the overall structure is firm, the beauty is generous.

Application

1 , The air pressure pump of air source is 4-6KG, about 30L/MIn.

2 , The machine is apply to the Daily Chemical and Food Industry.

3 , Labeling max width is 190mm(can be raised according to the require)Bottle diameter:30-100mm.

4 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

5 , It's suitable for the flat bottle,round bottle,square bottles of the single side and double sides labeling,such as oval shampoo bottle,Lubricating oil flat bottles,Hand sanitizer round bottles and so on.

6 , Double side labeling which improve the production efficiency,Widely used in cosmetic, cosmetic, petrochemical, pharmaceutical and other industries.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W
