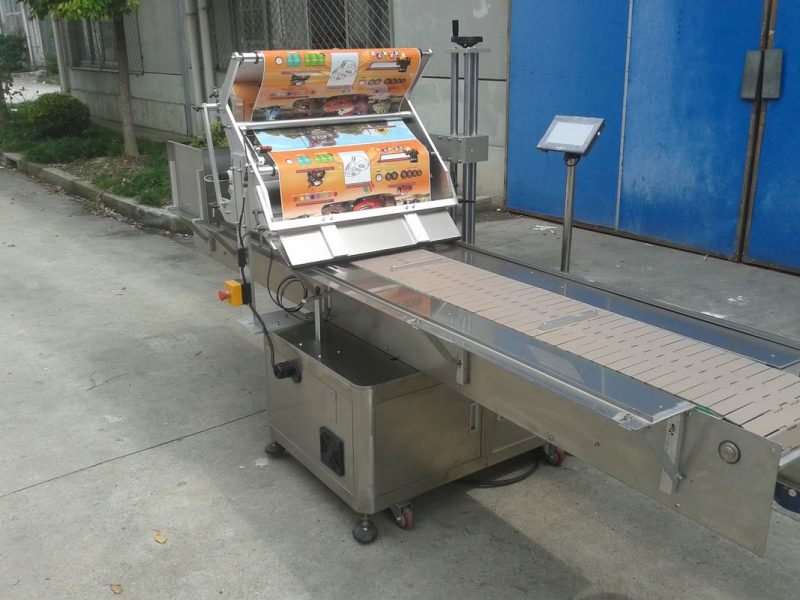

China Table Top Self Adhesive Sticker Flat Surface Label Applicator With Paging Machine Feeding Objects supplier
Detailed Product Description

Product Name:Table Top Self Adhesive Sticker Flat Surface Label Applicator With Paging Machine Feeding ObjectsOutput Speed:20-200pcs/min
Label Hight:15-110mmLabel Length:25-300mm
Accuracy Of Labeling:±0.8mmLabel Roller Inside Diameter:76mm
Label Roller Outside Diameter:350mm

Features

OperationPLC control system makes labeling machine easy to operate
MaterialLabeling machine's main body is made of SUS304 stainless steel
ConfigurationOur labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts
FlexibilityClient can chose to add printer and code machine; can chose to connect with converyer or not.

Technical Parameters

NameTable Top Self Adhesive Sticker Flat Surface Label Applicator With paging machine feeding objects
Labeling Speed20-200pcs/min
Height of Object30-200mm
Thickness of Object20-120mm
Height of Label15-110mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter300mm
Accuracy of Labeling±1mm
Power Supply220V 50/60HZ 0.75KW
Gas Consumption of Printer5Kg/m2(if add coding machine)
Size of Labeling Machine1600(L)×550(W)×1600(H)mm
Weight of Labeling Machine150kg

operational manual

1. Height adjusting of labeling mainframe

  • Height adjusting: rotate the adjusting handle grip clockwise to lift the mainframe, counter-clockwise to low down.
  • Loosen the fixing nut on the back before adjusting, and fasten it after adjusting.
  • Please notice if the peel off board will get in touch with the conveyer belt or working piece detector brackets
  • Wheel mechanism adjusting (option)
  • Adjust the position fixing clamping roller as closer as possible to the front peel-off board, just not influence the label coming out.
  • Turn off the air supply. Pull out the cylinder, put the object to be clamped between the fixing wheel and cylinder pushing wheel, make it a little bit tight then ok.

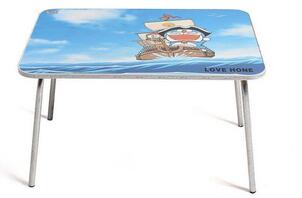

Case:

The requirements of client:

The length of flat table: 500-1000mm

The width of flat table: 250-550mm

The length of label:130mm

The width of label:160mm

The accuracy of labeling: ±0.5mm

Output Speed: 900 labels/h

An output tray

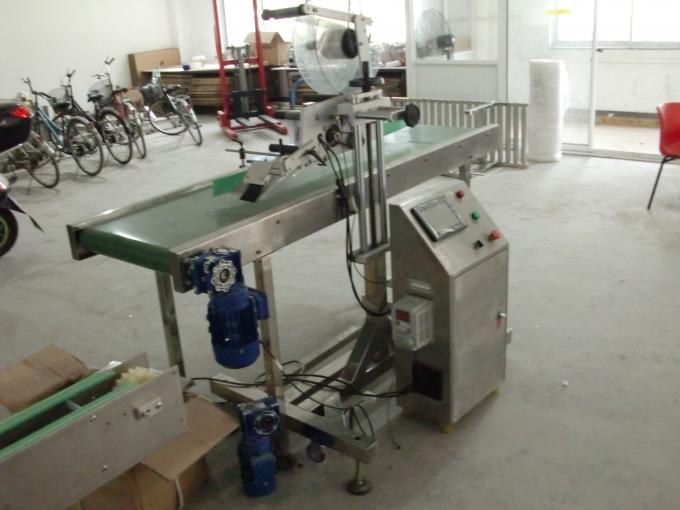

Table Top Self Adhesive Sticker Flat Surface Label Applicator With Paging Machine Feeding ObjectsTable Top Self Adhesive Sticker Flat Surface Label Applicator With Paging Machine Feeding Objects

Tag: flat label applicator, box labeling machine
