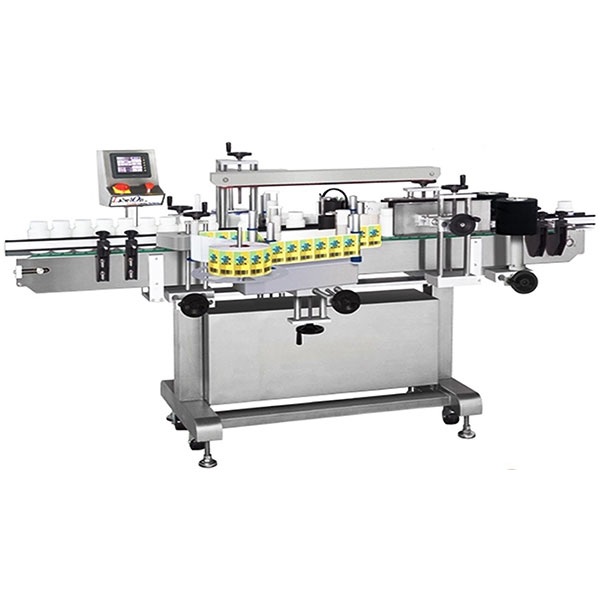

Preset Function Transparent Automatic Device Labeling Machine

Detailed Product Description

Labeling Height Max.:	190mm ,over This Size,accept Custom	Labeling Head Motor:	Servo Motor Control ,PLC
Original Place:	Guangzhou	Labeling Accuracy:	±1mm
Label Inner Diameter:	76.2mm	Maximum Labeling Diameter:	330mm
Bottle Diameter:	30-100mm	Machine Layout Size:	L2000mm W 700MM H 1400MM
Air Source:	4-6kg 30L/min	Woodcase Packing Size:	L2020mm W1300MM H 1600MM
Machine Weight:	300kgs

Sticker Round Bottle Labeling Machine Preset Function Transparent Automatic Device Labeler

Application

1 , The labeling machine is applicable to label cylinder bottles / jar / container in daily chemicals ,beverages ,pharmaceuticals etc

​2, Single product's labeling ,different size bottle need to change the rollers

​3, Labeling rollers with high labeling accuracy ,high repeat precision

​4, labeling without bubbles ,no wrinkle

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Weight	380KG
Using power	220V 50HZ 1500W

Product Characteristic

1 , The whole machine adopts a mature technology PLC control system, so that the operation of the machine is stable and high speed.

2 , The operating is simple and convenient, practical and efficient,the operating system adopts touch-screen control.

3 , Upgraded dished label station design, can label conical bottle.

4, Labeling transparent label without bubble, labeling adhesive sticker does not wrinkle.

5, Machine can work alone and working together with other production line

FEATURES

1 , Coding Machine for option, it can print date, lot No. online.

2 , Structure designed simple, smart, easy to maintenance.

3 , Use famous brand motor driven, label supply stable and reliable.

4 , PLC control system, the whole machine work stable with high speed.

5 , Photoswitch inspection to ensure no bottle, no labeling; no label, autocorrection and alarm.

6 , Common diverter is suitable for different diameter of bottles, fast adjustment and locked location.

7 , Labeling speed, convey speed, diverter speed can be adjusted.

8 , Use resilience cotton belt ensure labeling smooth, no fold, improved labeling quality.

9, Most component are made by aluminumofanodizing3.0 side board,cutting the weight and cutting the transportation fees.
